A/T Mount Replacement (Brace)

REMOVAL PROCEDURE





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Raise the vehicle. Refer to Vehicle Lifting.
3. Remove the right front tire and wheel assembly.
4. Remove the right front splash shield.

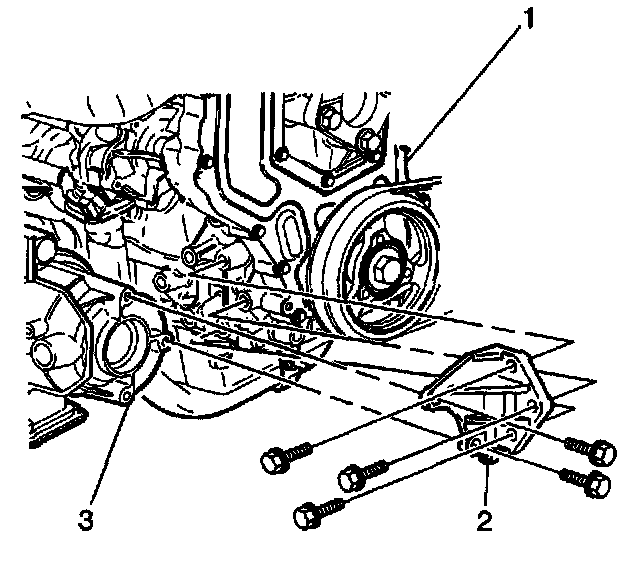

5. Remove the transmission brace (2) bolts.





6. Remove the transmission brace (2).

INSTALLATION PROCEDURE

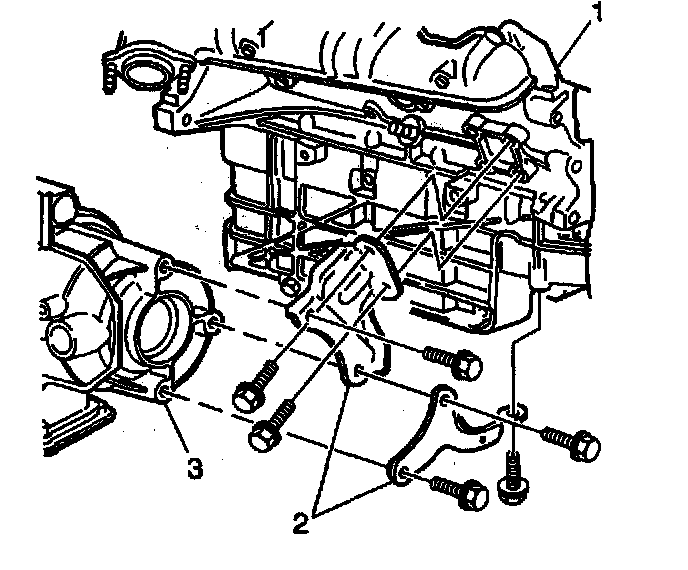

1. Install the transmission brace (2).





2. Install the transmission (2) brace to engine bolts.
3. Install the transmission brace to transmission bolts.
4. Install the right front splash shield.
5. Install the right front tire and wheel assembly.
6. Lower the vehicle.
7. Connect the negative battery cable.
^ Tighten the bolt to 16 Nm (12 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

8. Check fluid level.
