TFP Manual Valve Position Switch Resistance Check

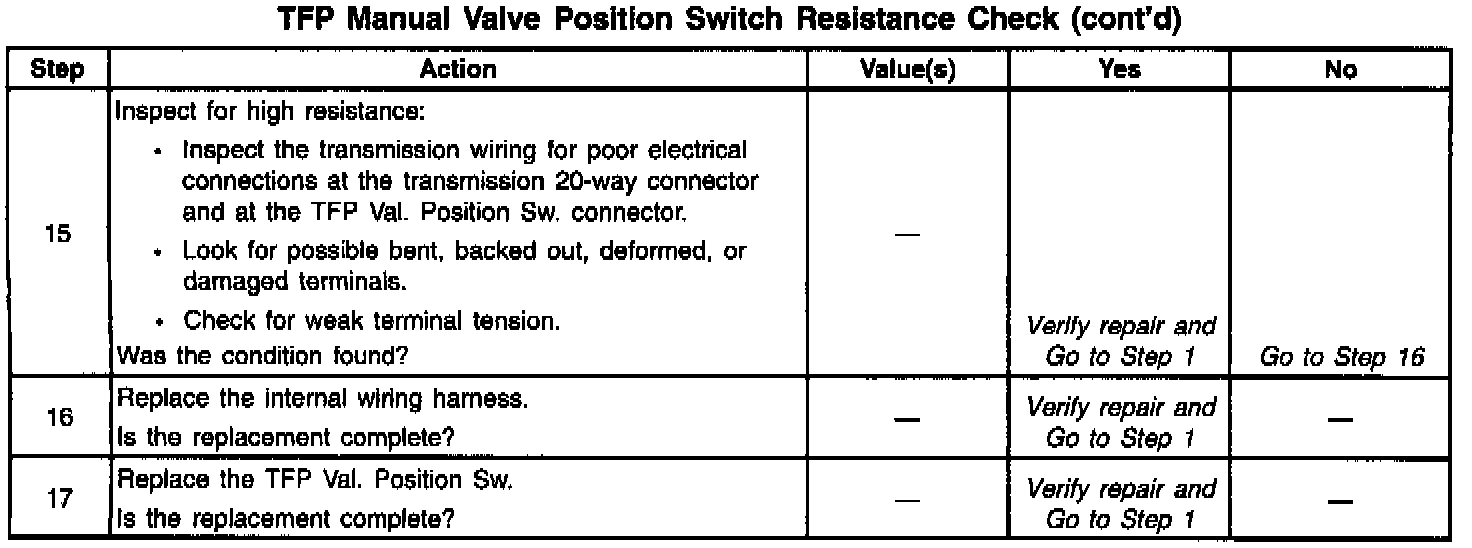

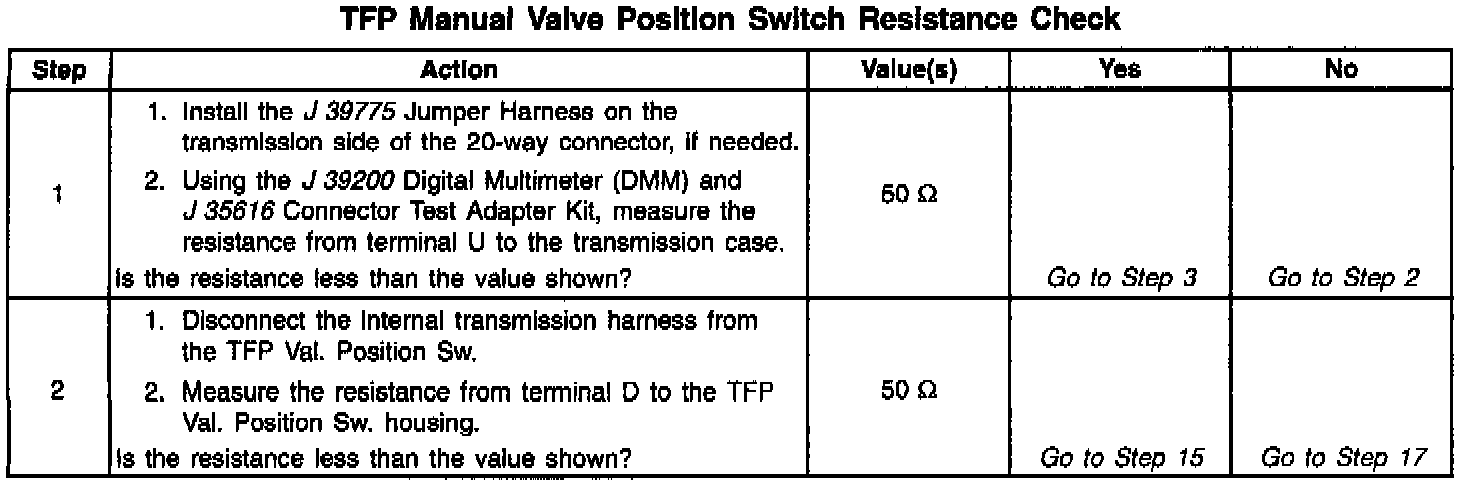

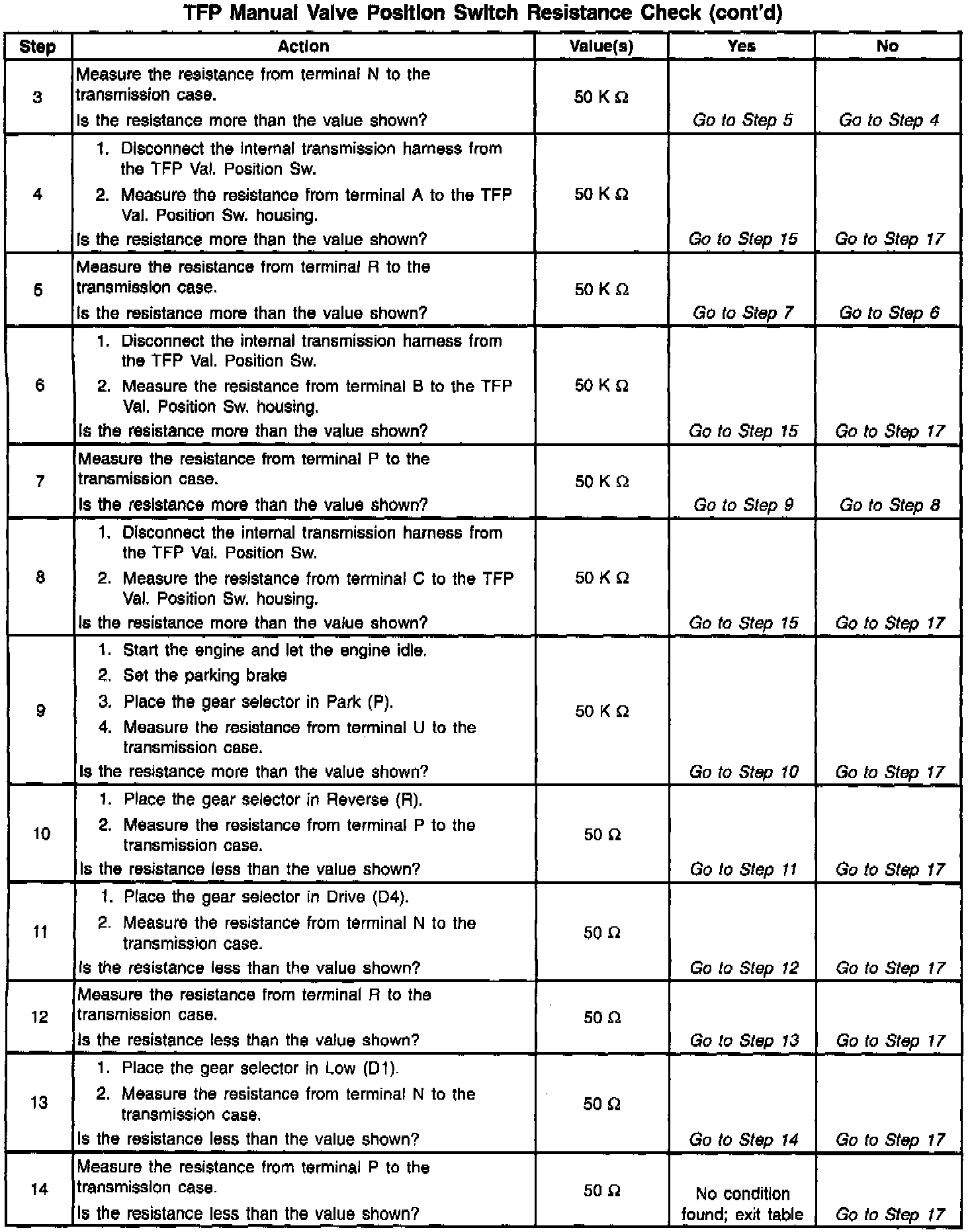

Diagnostic Chart:



Diagnostic Chart:



Diagnostic Chart:
