Intermediate/4TH Servo Removal

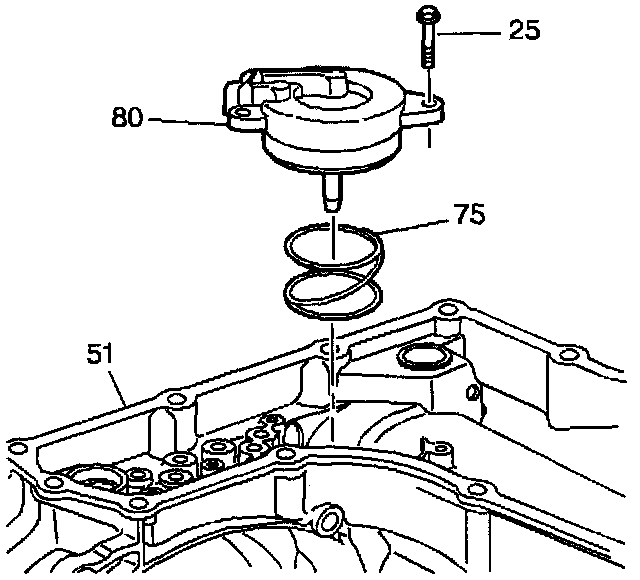

Intermediate/4TH Servo Removal
1.
Remove the three servo cover bolts (25).
2.
Remove the servo cover (Intermediate/Fourth) (80) assembly.
3.
Remove the servo return spring (75).
