Output Axle Shaft Sleeve Replacement

REMOVAL PROCEDURE

^ Tools Required
- J 41227 Stub Shaft Sleeve Remover
- J 41228 Stub Shaft Sleeve Installer





1. Raise the vehicle, refer to Vehicle Lifting.
2. Remove the drive axle assembly.
3. Remove the transmission side cover.
4. Remove the snap ring from the axle.

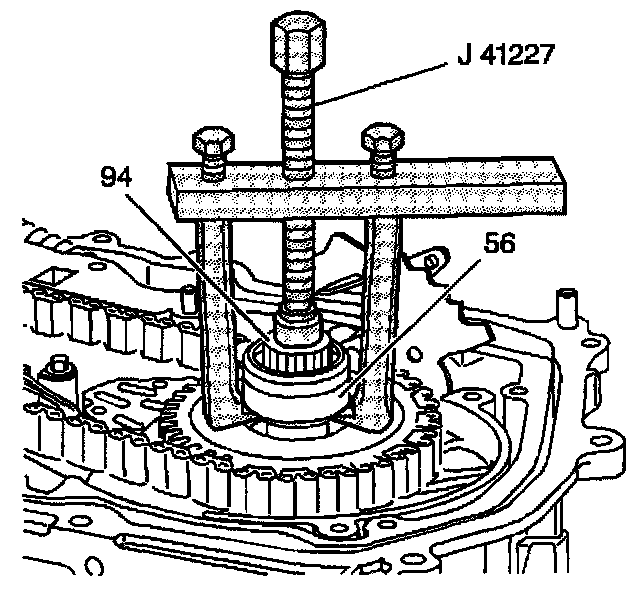

5. Remove the sleeve (56) from the output shaft using the J 41227.
6. Inspect the sleeve for excessive wear, scratches or nicks that may cause a leak or damage to the seal portion. If the sleeve appears damaged, replace the seal (94).

INSTALLATION PROCEDURE
1. Install the new sleeve on the output shaft using J 41228. Install the sleeve installation tool so that the collar is located in the snap ring groove.
2. Install one new snap ring on the output shaft.
3. Install the seal protector onto the side cover to prevent the seal from rolling.
4. Install the transmission side cover assembly.
5. Install the drive axle assembly.
6. Lower the vehicle.
7. Inspect for leaks.
8. Check the oil level, refer to Transmission Fluid Checking Procedure (Oil Level Check).
