On-Vehicle Service

REMOVE OR DISCONNECT
1. Siphon power steering fluid from reservoir.
2. Raise vehicle.
3. Left front tire.
4. Lower pinch bolt on intermediate shaft assembly and push shaft up towards steering column.

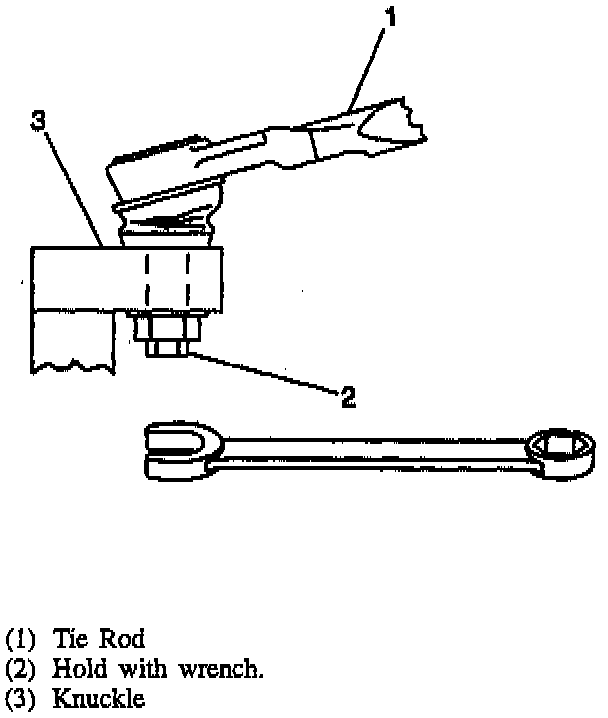

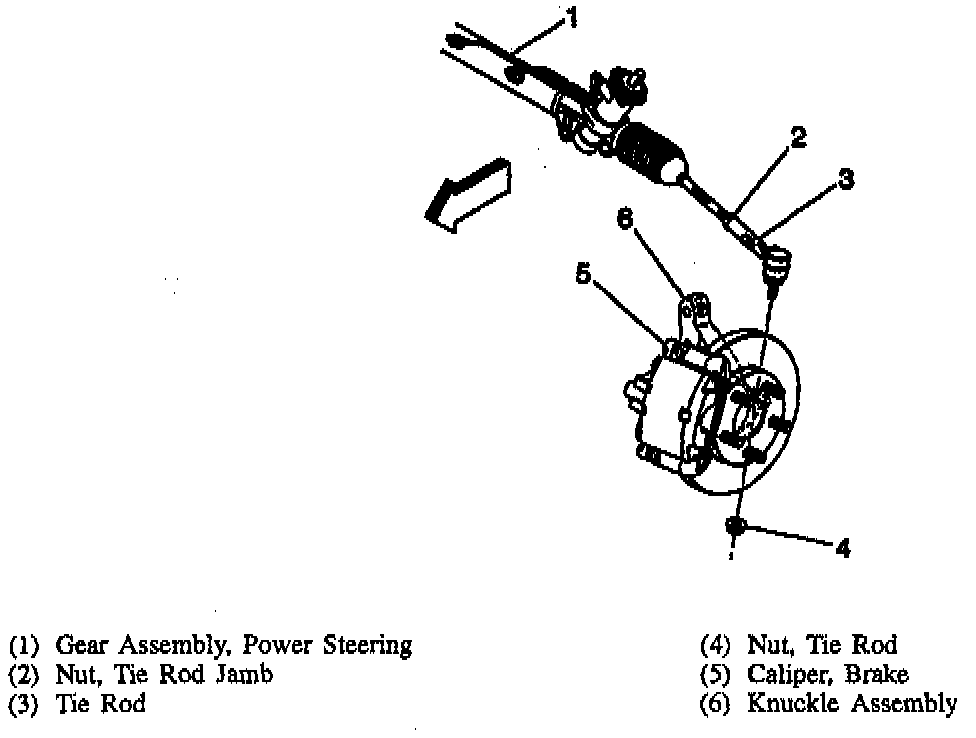

5. Remove tie rods from knuckles.

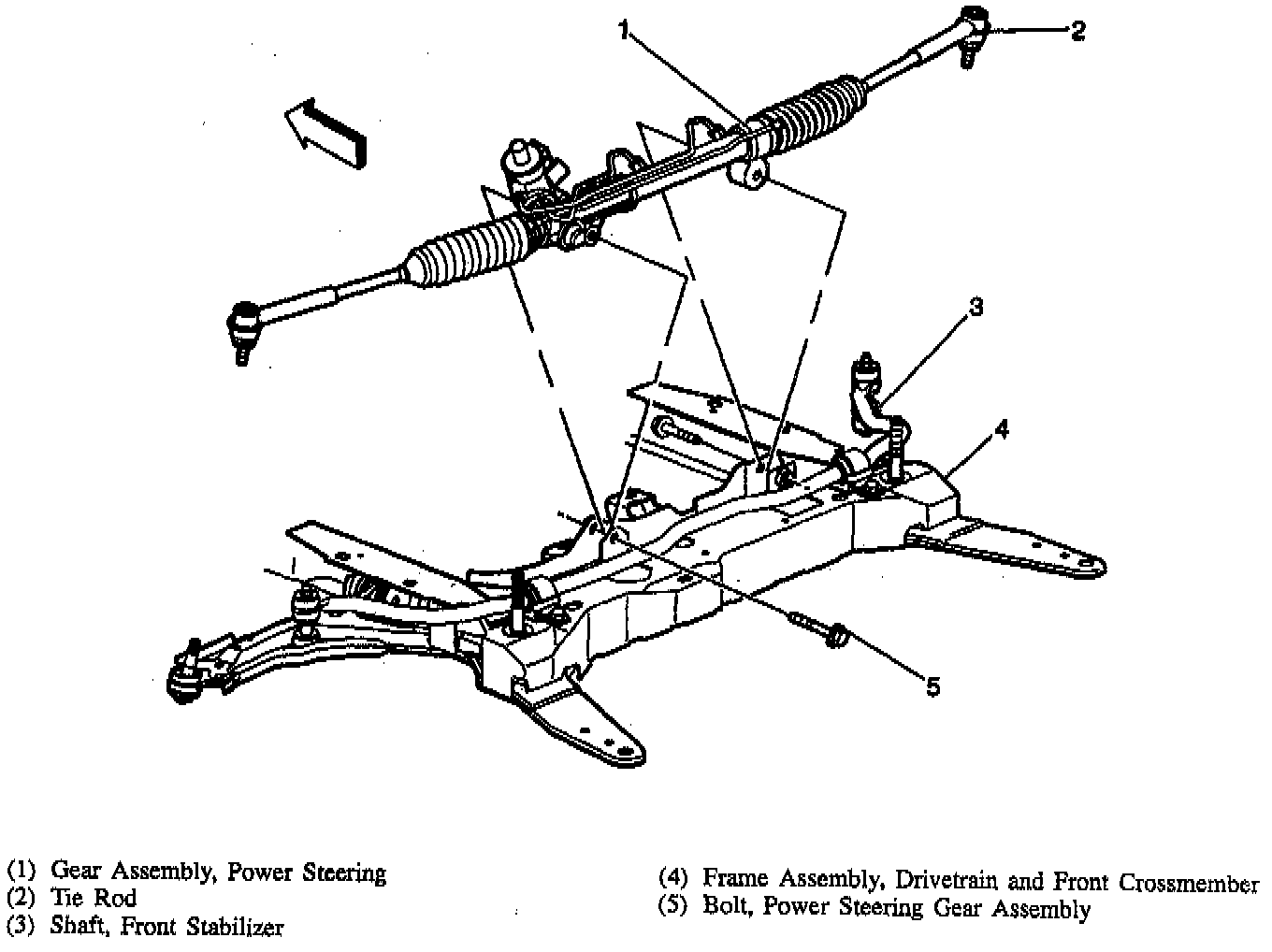

6. Steering gear bolts.
7. Transmission mount to Crossmember bolt.
8. Remove rear Crossmember to body bolts to provide clearance to remove power steering pipe/hoses.
9. Loosen front Crossmember bolts.
10. Power steering pipes from steering gear.
11. Steering gear through left wheel opening.

INSTALL OR CONNECT
1. Steering gear through left wheel opening.
2. Power steering pipes to steering gear.
3. Tighten front Crossmember bolts.
4. Install rear Crossmember to body bolts.
5. Transmission mount to Crossmember bolt.
6. Steering gear bolts.
7. Install tie rods to knuckles.
8. Lower pinch bolt on intermediate shaft assembly.
9. Left front tire.
10. Lower vehicle.
^ Fill reservoir with power steering fluid and bleed air from system.
^ Inspect for leaks.
