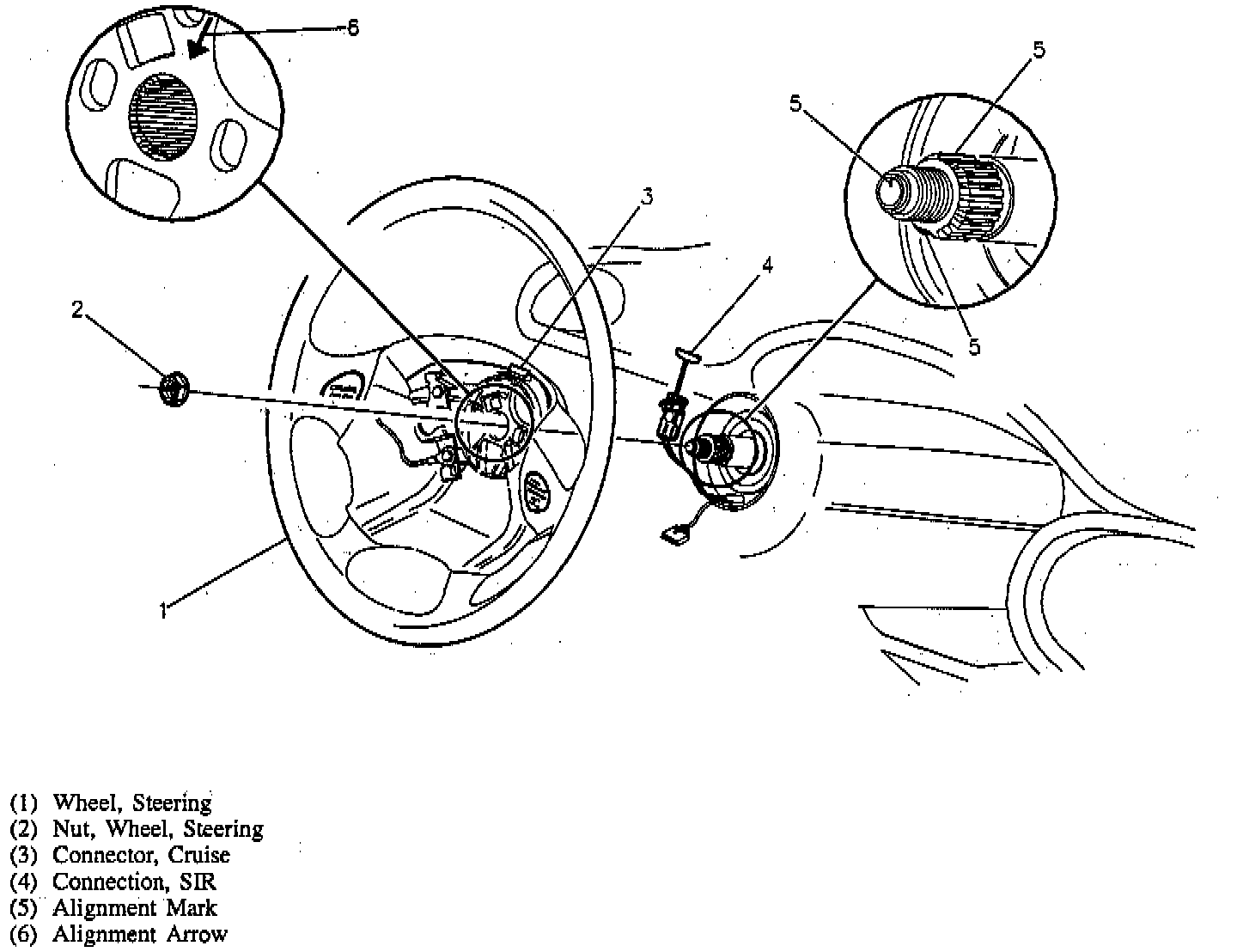

Steering Wheel

Steering Wheel:

^ Tool Required:
- J 1859-A Steering Wheel Puller
- J 42120 Steering Wheel Puller Jaws

Remove or Disconnect
1. Disable the SIR system.
2. Inflator module, horn, and cruise control connections.
3. Nut.
4. Steering wheel.

Install or Connect
1. Steering wheel. Align mark on steering wheel with mark on shaft.
2. Nut.

Tighten
- Steering wheel nut to 41 N.m (30 lb ft).

3. Horn connection and Inflator module.
4. Enable the SIR system.
