Multifunction Switch Replacement

Steering Column Multifunction Switch Levers:

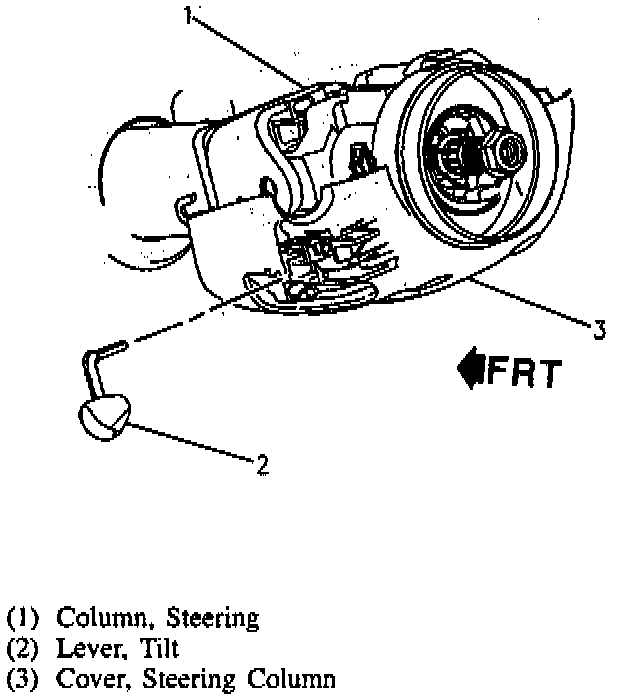

Tilt Lever:

Remove or Disconnect
1. Tilt lever from column (if equipped).
2. Upper and lower steering column covers.
3. Switch assembly.

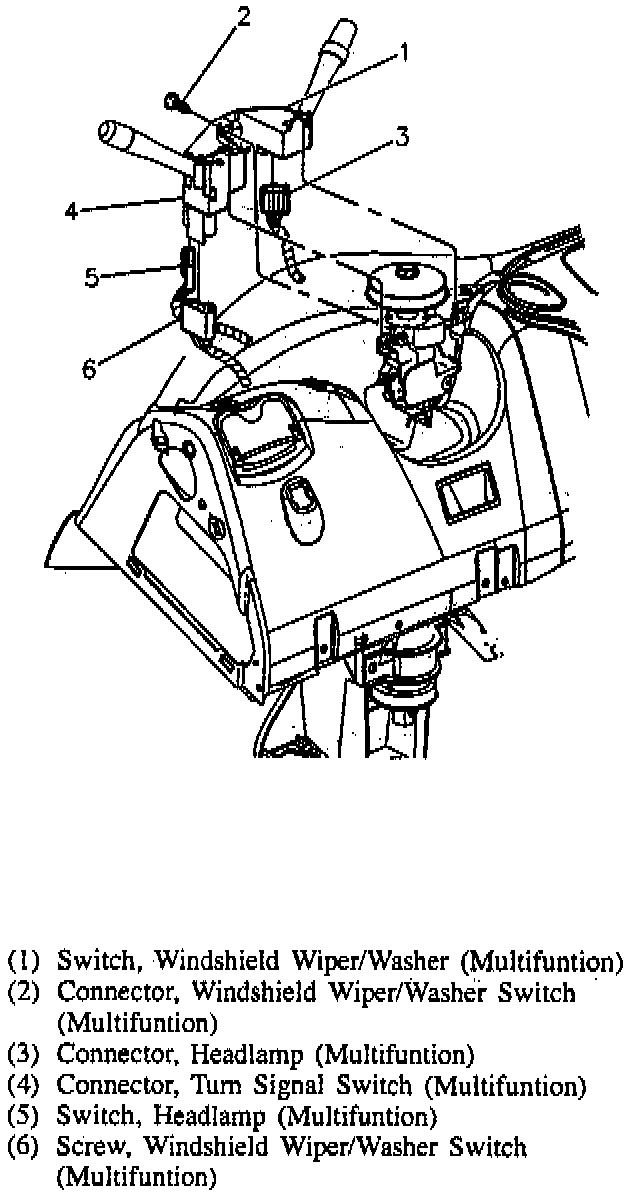

The left side of this switch has a lever which includes the headlamp, headlamp dimmer, and turn signal switches. On the right hand lever is the windshield wiper and washer functions.

Install or Connect
1. Switch assembly.
2. Upper and lower steering column covers.
3. Tilt lever to column (if equipped).
