Installation Procedure

Description:

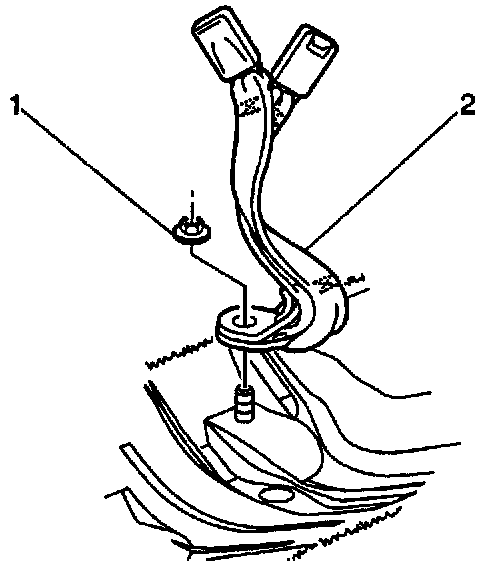

1. Install the rear seat center latch belt (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the rear seat center latch belt nut (2).

Tighten
Tighten the rear seat center latch belt nut to 42 N.m (31 lb. ft).

3. Install the rear seat cushion. Refer to Rear Seat Cushion in Seats and Carpet.
