Removal

Description:

1. Disable the SIR system. Refer to Disabling the SIR System.
2. Remove the instrument panel compartment. Refer to Instrument Panel Compartment in Instrument Panel, Gauges and Console.

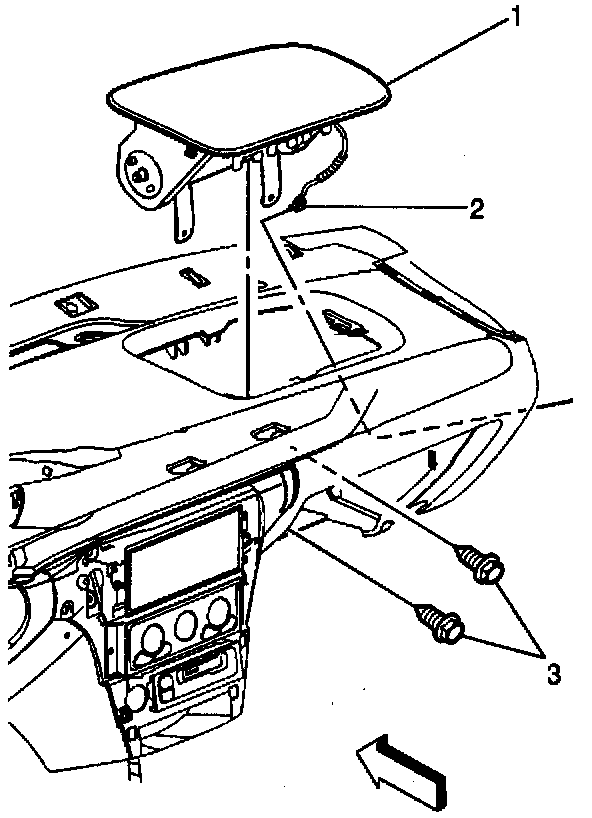

3. Remove the inflatable restraint I/P module mounting fasteners (3).
4. Remove the inflatable restraint I/P module (1) from the vehicle.
