EGR Valve: Service and Repair

REMOVAL PROCEDURE

1. Disconnect the electrical connector at the EGR valve.

2. Remove the two base to flange nuts and linear EGR valve assembly.

Linear EGR Valve:

INSTALLATION PROCEDURE

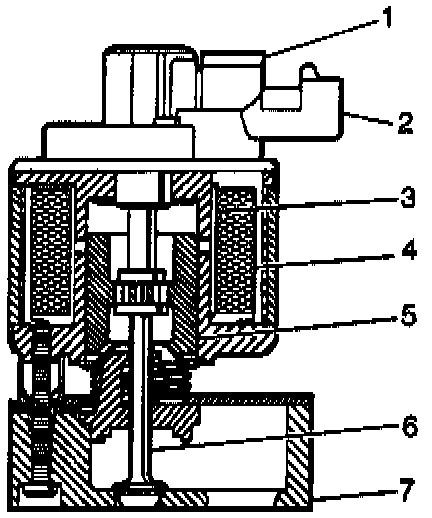

Typical EGR Valve shown.

1. Install the EGR valve assembly and two nuts.

^ Tighten the nuts to 30 N.m (22 lb. ft).

2. Connect the electrical connector.
