Canister Purge Control Valve: Service and Repair

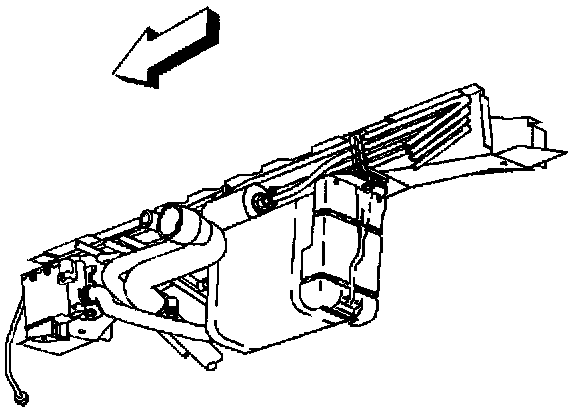

REMOVAL PROCEDURE

1. Disconnect the electrical connector.

2. Remove the [1][2]EVAP vent solenoid from the bracket.

3. Remove the vent hose from solenoid.

4. Remove the [1][2]EVAP vent solenoid.

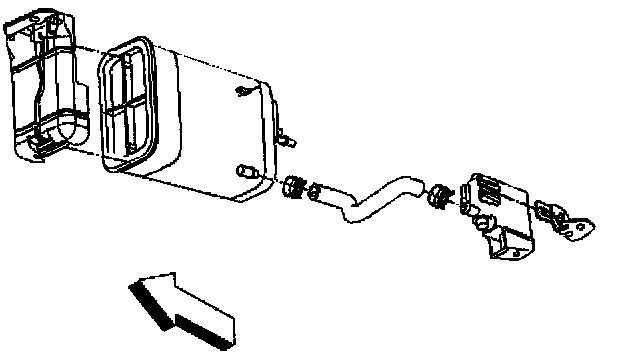

INSTALLATION PROCEDURE

1. Install the [1][2]EVAP vent solenoid.

2. Install the vent hose. Canister vent hose should be routed below the fuel tank fill and vent hoses.

3. Connect the electrical connector.

4. Install the [1][2]EVAP vent solenoid retaining screw.
