Home
>>
Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Connector Views
Connector Views

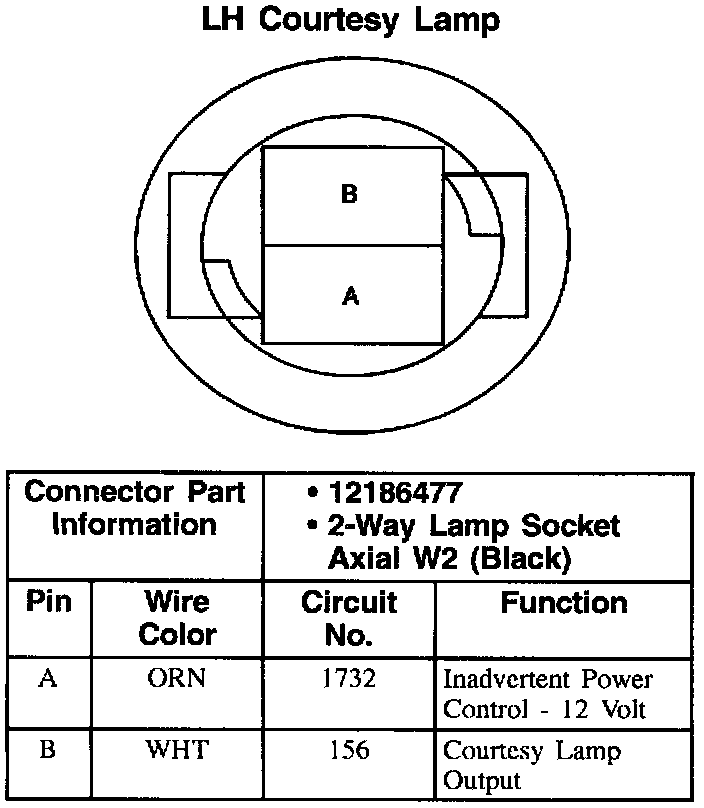

LH Courtesy Lamp:

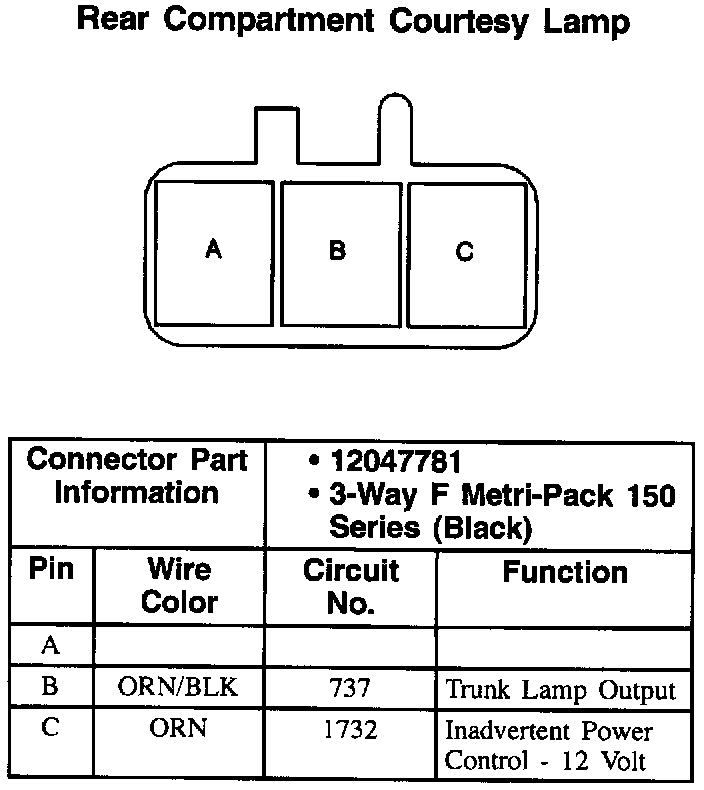

Rear Compartment Courtesy Lamp:
