Removal/Installation (Driver Side)

REMOVAL PROCEDURE

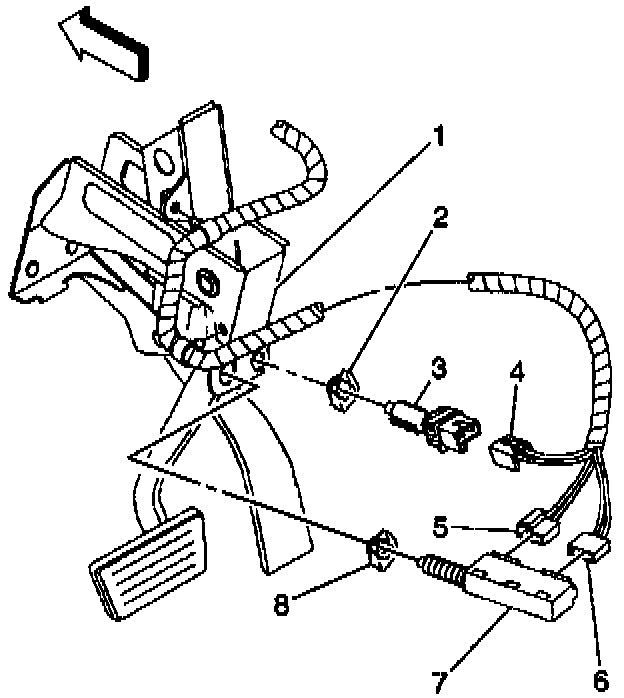

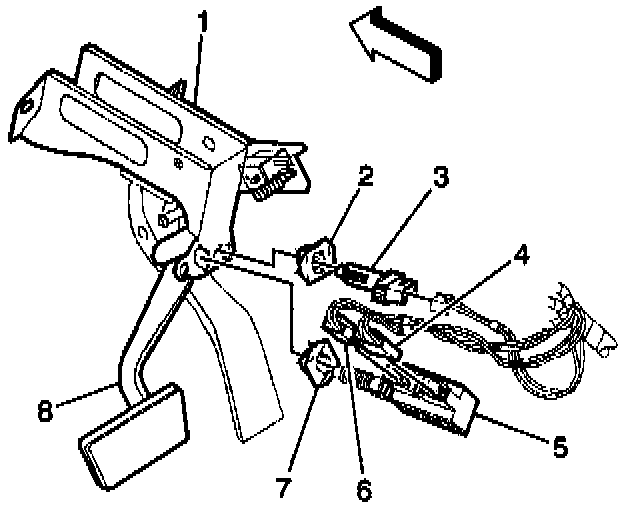

1. Remove the driver side sound insulator.
2. Remove the electrical connection.
3. Disconnect the brake switch retainer (2), grasping and turning 90 degrees counterclockwise and pulling towards the rear of the vehicle.

INSTALLATION PROCEDURE

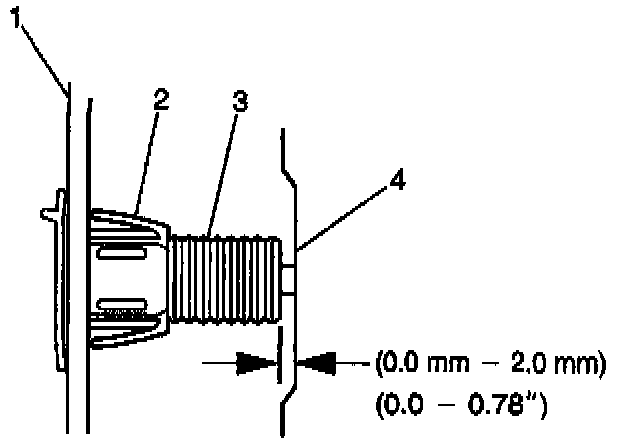

1. Insert the stop lamp switch (2) into the retainer until the switch body seats on the retainer.





2. Pull the brake pedal (3) upward against the internal pedal stop.
^ For the diagnosis of the stop light circuit, refer to Diagrams.
^ For adjustment of the stop lamp.
