Cigarette Lighter: Service and Repair

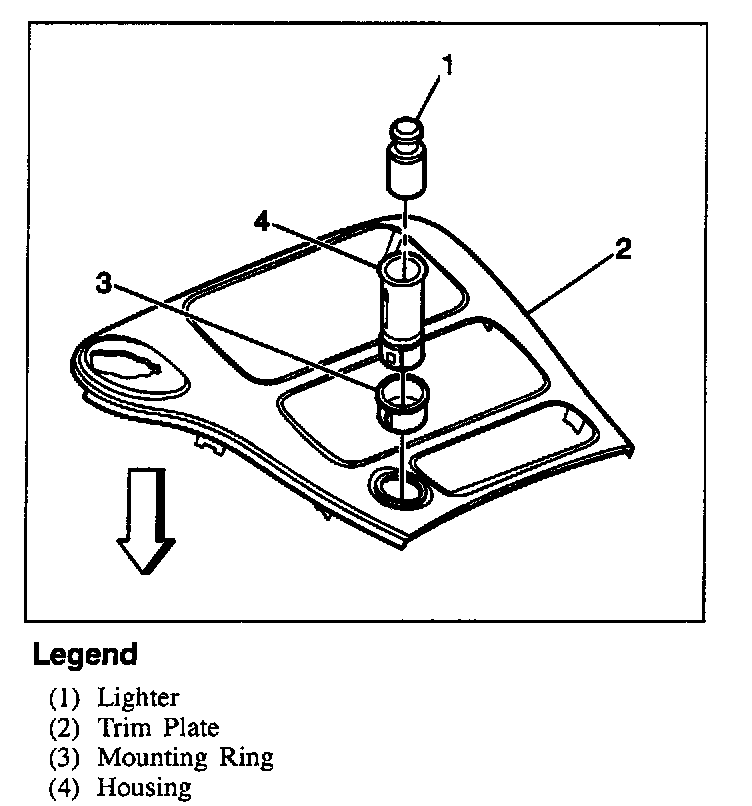

Cigar Lighter - Oldsmobile:

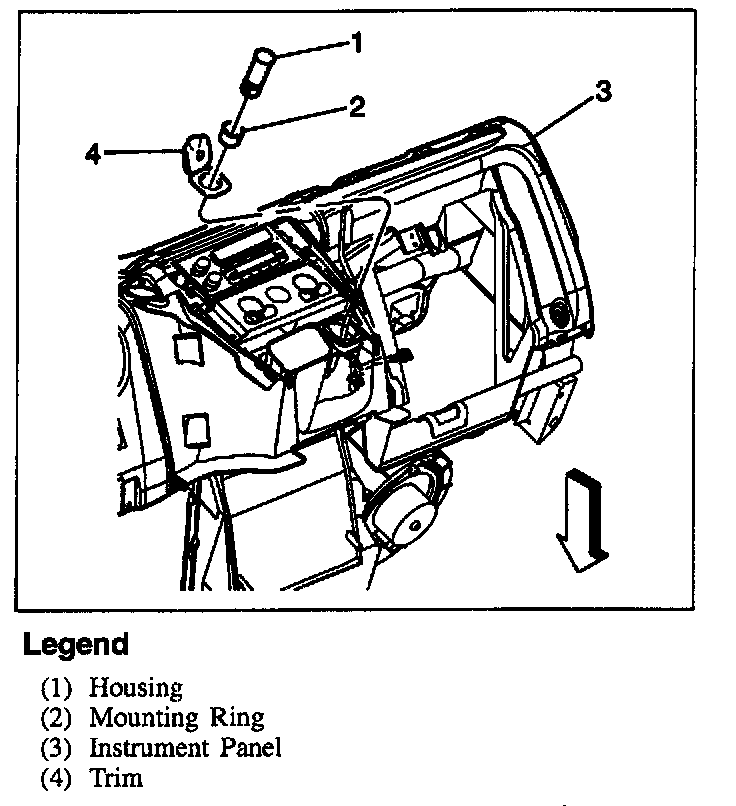

Cigar Lighter - Chevrolet:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Accessory trim plate.
3. Electrical connector.
4. Lighter Rousing from trim plate.

INSTALL OR CONNECT
1. Lighter Housing to trim plate.
2. Electrical connector.
3. Accessory trim plate.
4. Negative battery cable.
