Vacuum Harness HVAC: Service and Repair

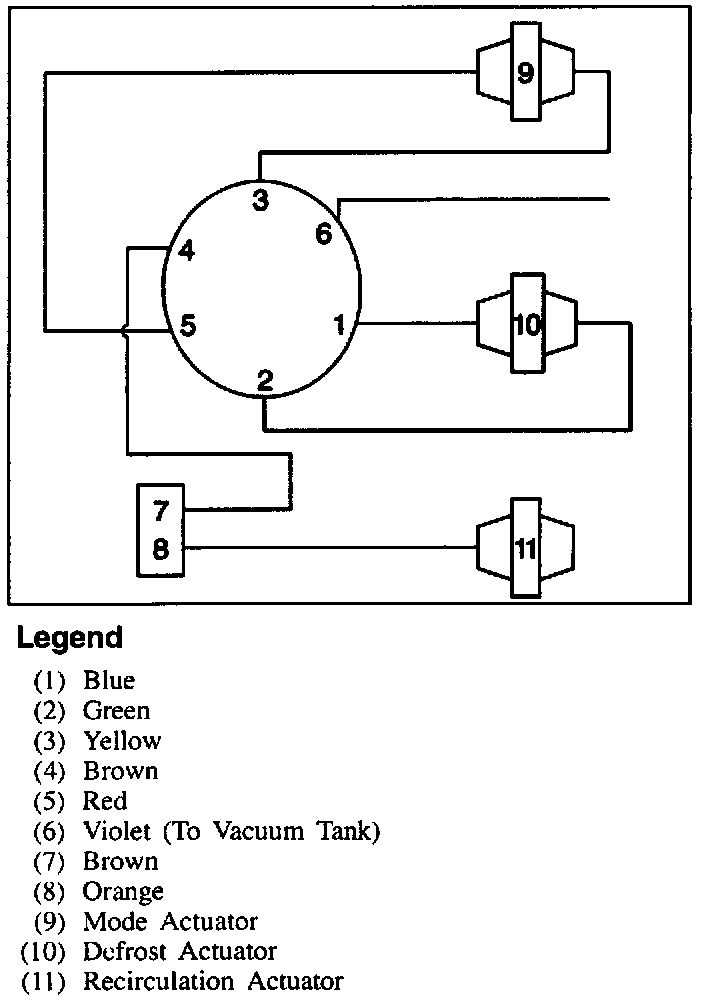

HVAC Vacuum Hoses And Actuators:

Remove or Disconnect

1. Negative battery cable.
2. Instrument Panel.
3. Air distribution ducts as necessary.
4. Vacuum hoses at the vacuum actuators, vacuum tank and HVAC control.

Install or Connect

1. Vacuum hoses to the vacuum actuators, vacuum tank and HVAC control.
2. Air distribution ducts as necessary.
3. Instrument panel.
4. Negative battery cable.

Tighten
^ Bolt to 16 N.m (12 lb ft)
