Cross-Car Air Distribution Duct

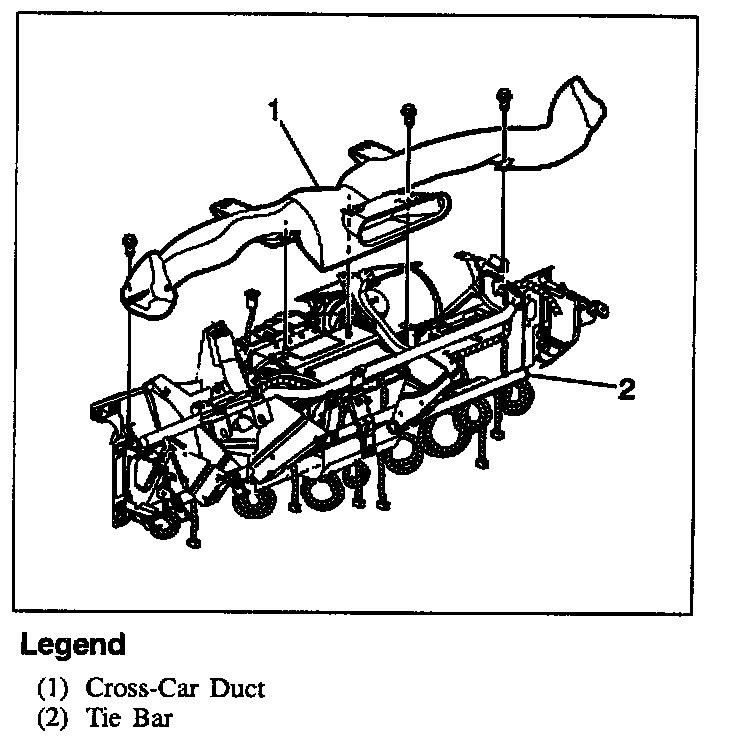

Cross-Car Air Distribution Duct:

REMOVE OR DISCONNECT
1. Instrument Panel Tie Bar. Refer to Instrument Panel Tie Bar. Instrument Cluster / Carrier
2. Cross-car air distribution duct.

INSTALL OR CONNECT
1. Cross-car Air Distribution Duct.
2. Instrument Panel Tie Bar.
