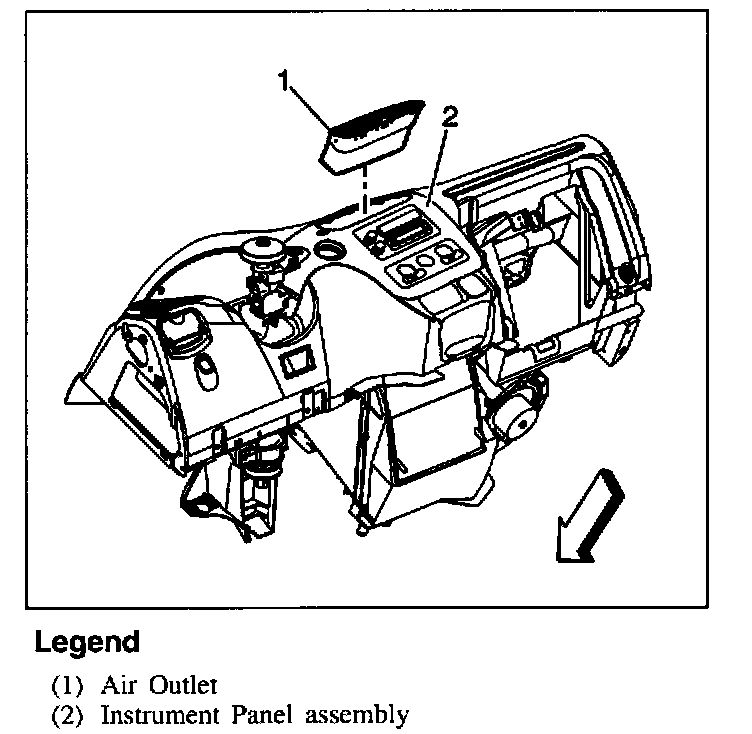

Air Outlets

Center Air Outlet - Oldsmobile:

Instrument Panel End Caps:

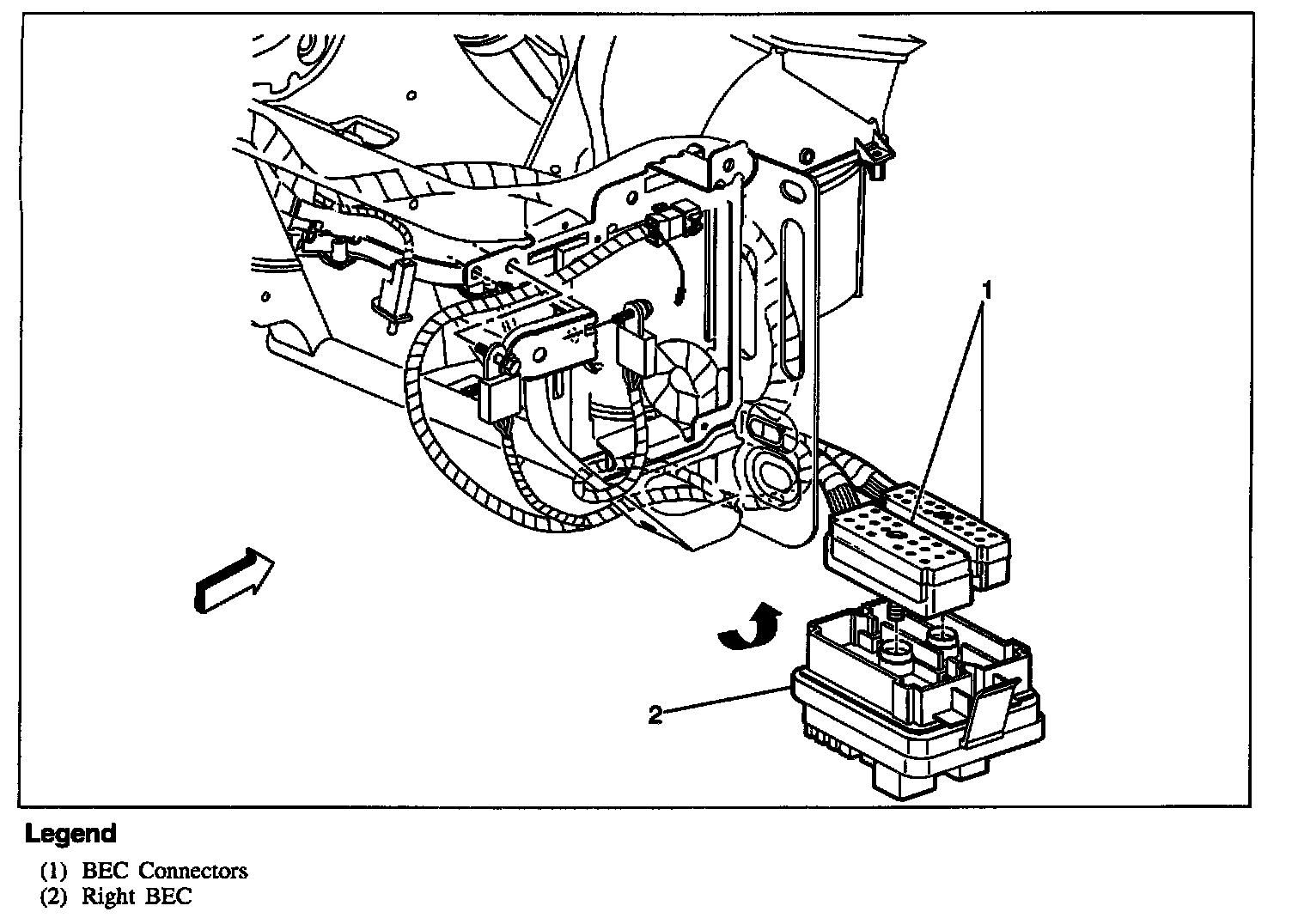

Right BEC:

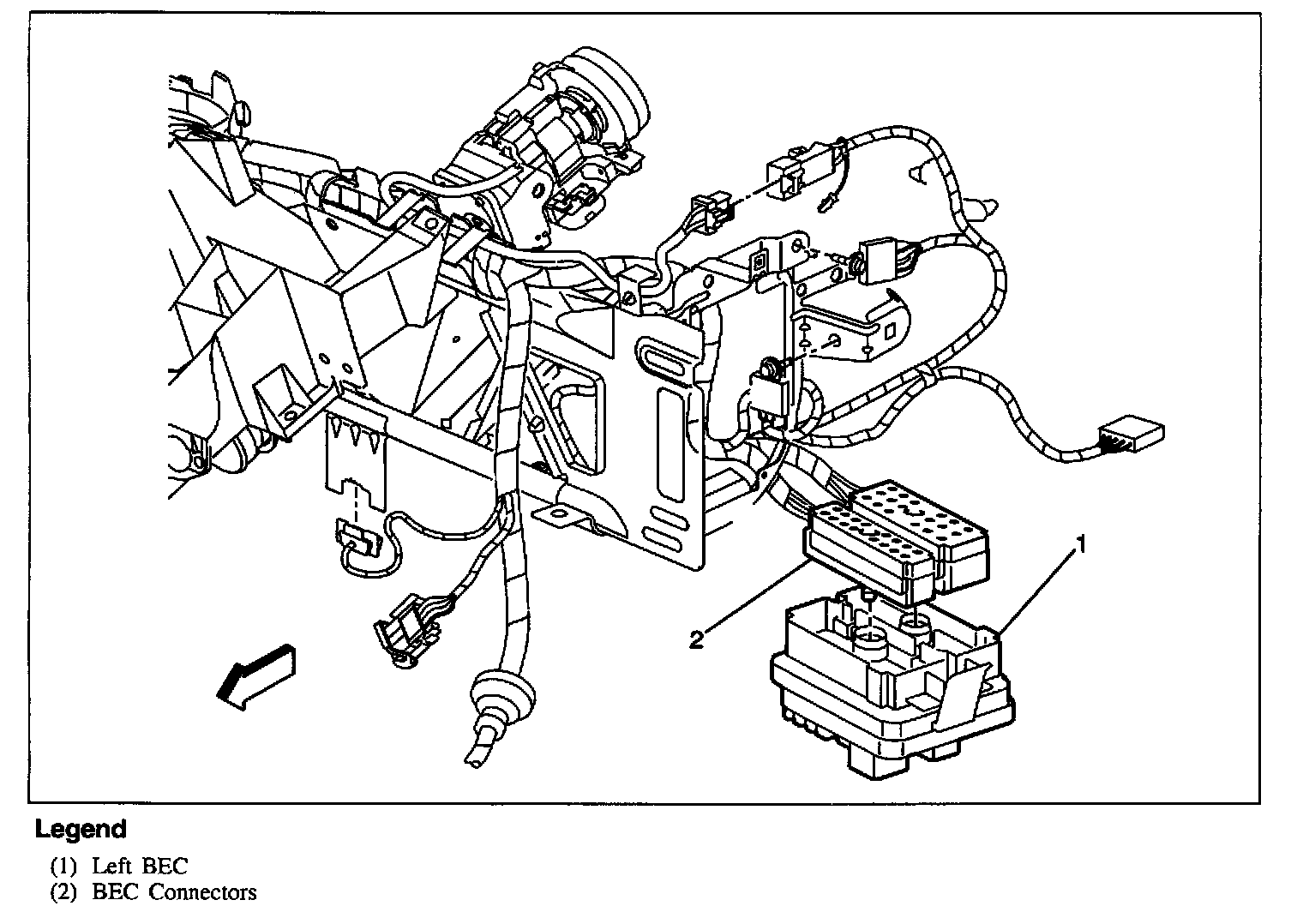

Left BEC:

Instrument Panel Ti Tie Bar:

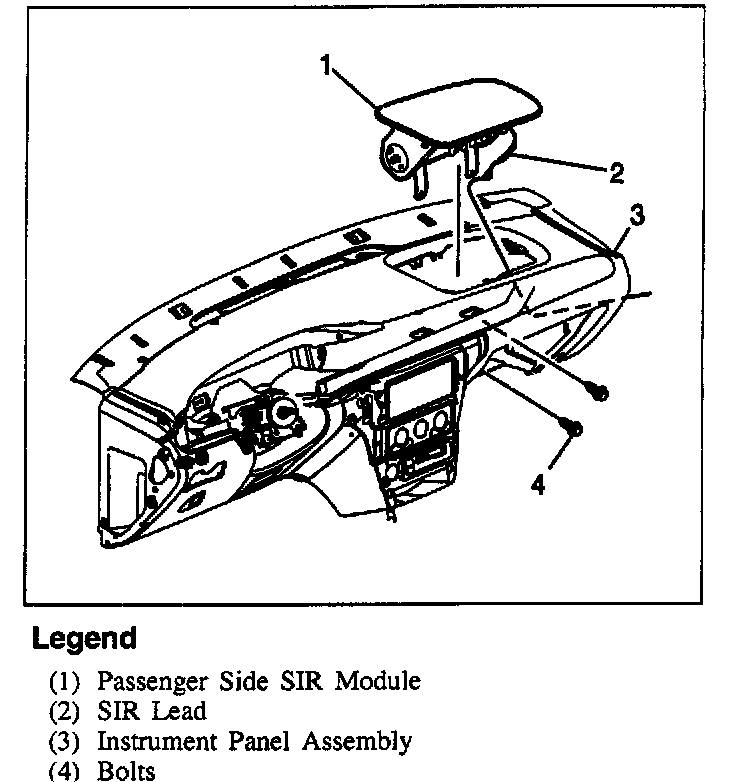

Passenger SIR Module To Instrument Panel:

Cluster Trim Panel - Chevrolet:

REMOVE OR DISCONNECT
1. Gently pry out accessory trim plate.
2. Air outlet.

INSTALL OR CONNECT
1. Align outlet and carefully press into place.
