Air Conditioning Switch: Service and Repair

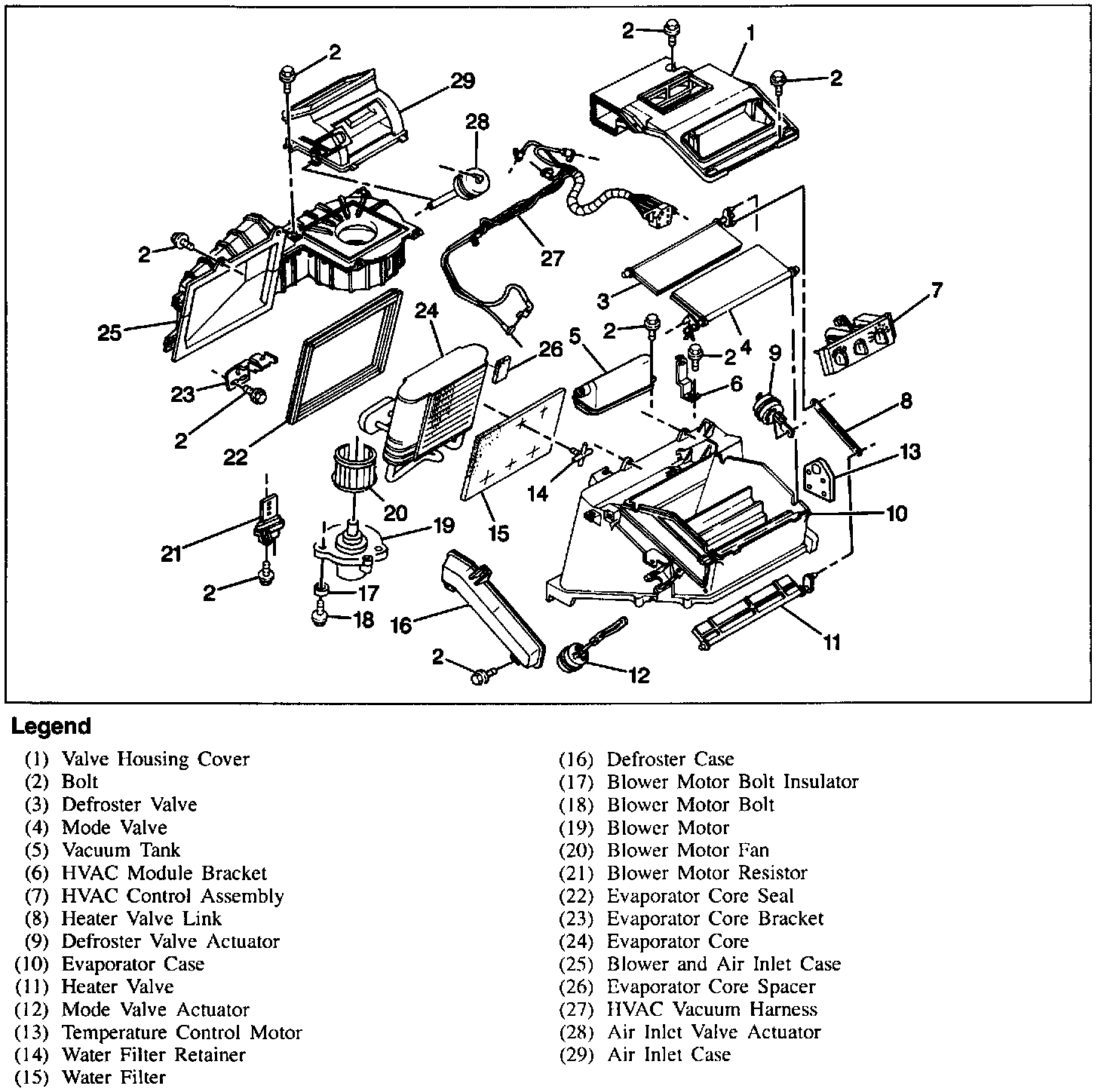

Heater And A/C Module (1 Of 1):

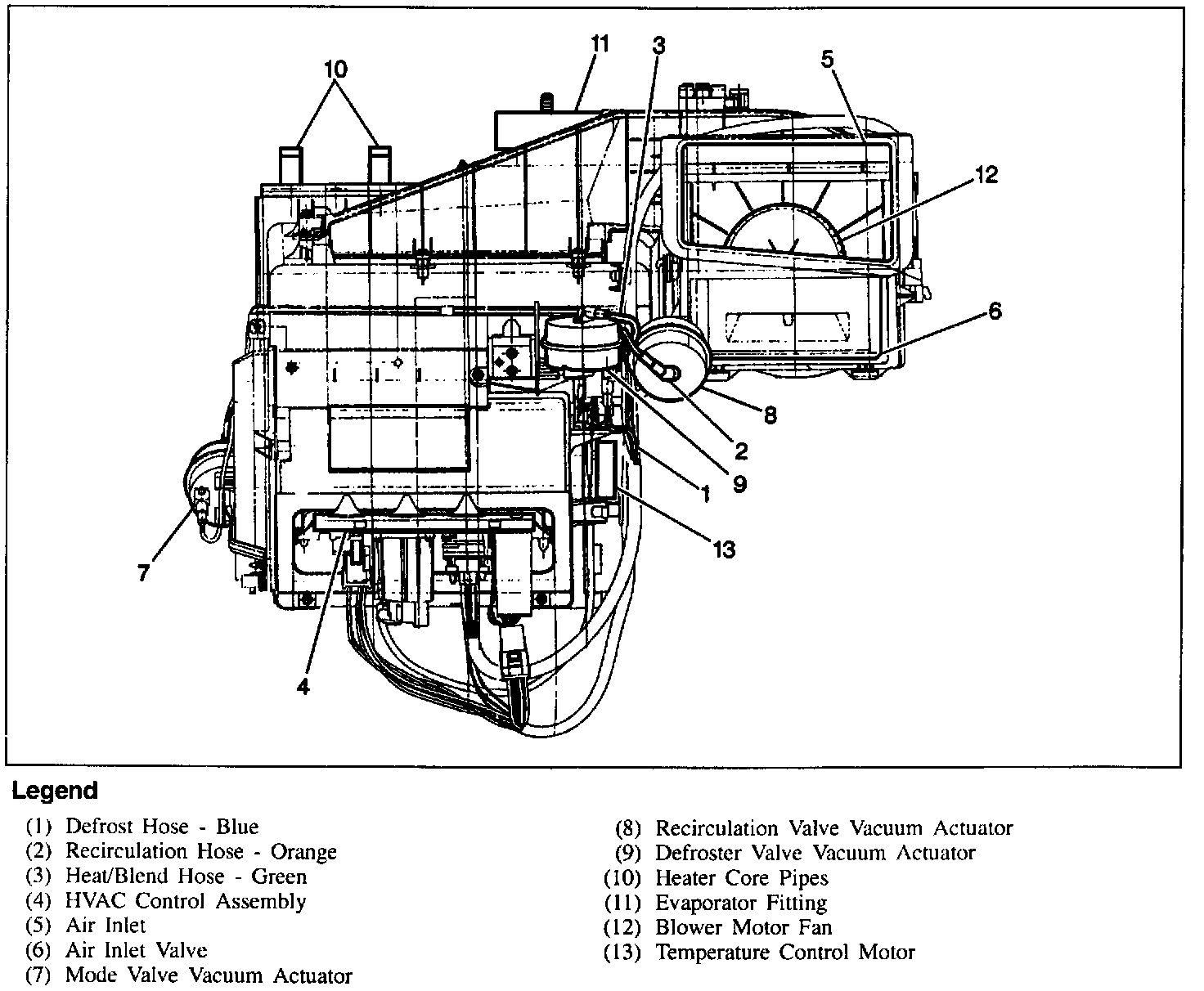

Heater And A/C Module - Top View:

Remove or Disconnect

1. Instrument Panel Compartment.
2. Electrical connector from motor.
3. Motor from module.

Install or Connect

1. Motor to module.

Tighten
^ Screws to 1 N.m (9 lb in).

2. Electrical connector to motor.
3. Instrument Panel Compartment.
