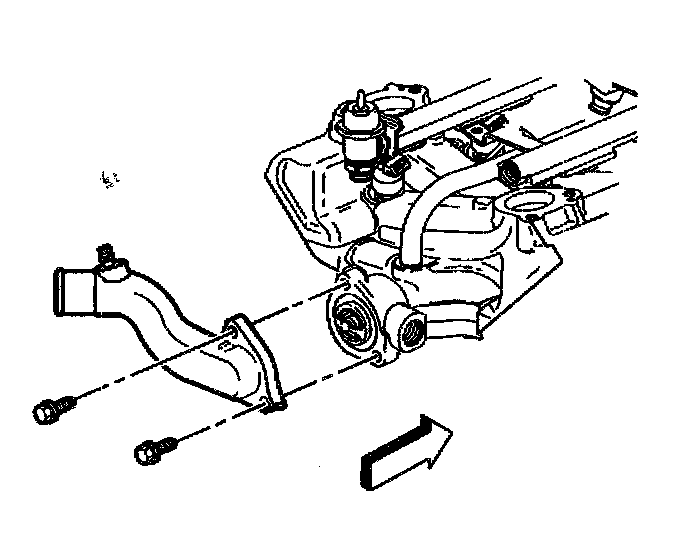

Water Outlet Installation

1. Install the water outlet gasket.
2. Install the water outlet.
3. Install the water outlet bolts.
^ Tighten the water outlet bolts to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.
