Oil Pump Installation

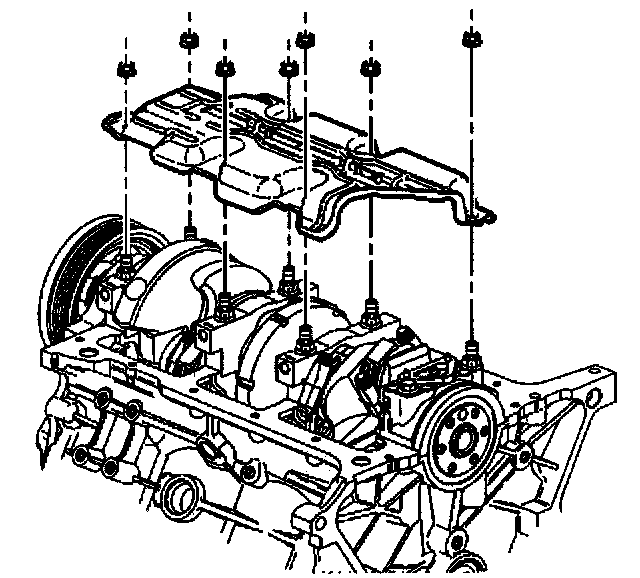

1. Install the crankshaft oil deflector.
2. Install the crankshaft oil deflector nuts.
^ Tighten the crankshaft oil deflector nuts to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

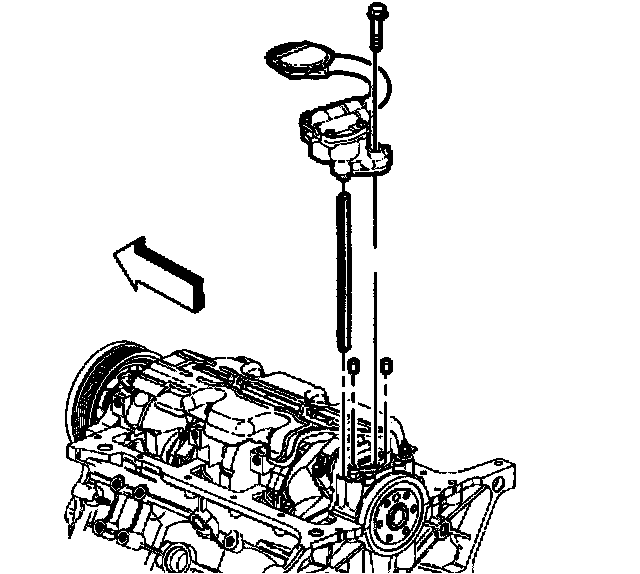

3. Install the oil pump and oil pump drive shaft.
4. Install the oil pump bolt.
^ Tighten the oil pump bolt to 41 Nm (30 ft. lbs.).
