Intake Manifold Installation (Upper)

1. Install the upper intake manifold gaskets.
2. Install the upper intake manifold.
3. Install the upper intake manifold bolts and studs.
^ Tighten the upper intake manifold bolts and studs to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





4. Install the spark plugs.
^ Tighten the spark plugs to 27 Nm (20 ft. lbs.).

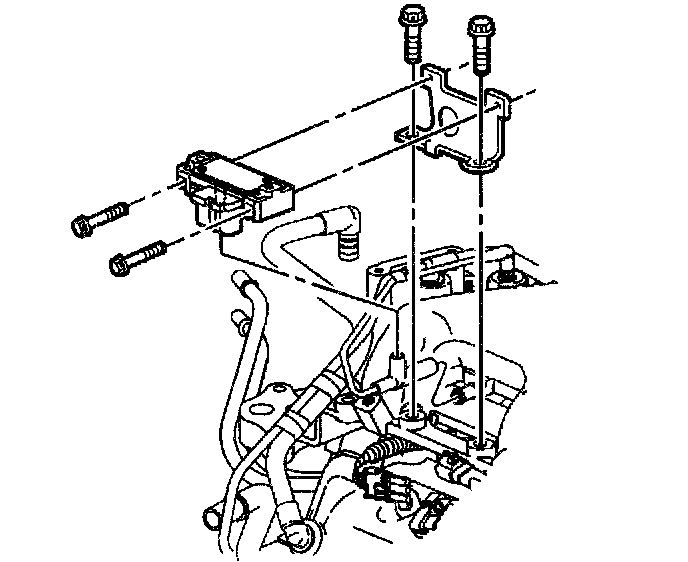

5. Install the electronic ignition control module.
6. Install the electronic ignition control module nuts and bolts.
^ Tighten the electronic ignition control module nuts and bolts to 25 Nm (18 ft. lbs.).

7. Install the spark plug wires.





8. Install the EGR valve pipe and gasket.
^ Tighten the EGR valve pipe to 25 Nm (18 ft. lbs.).

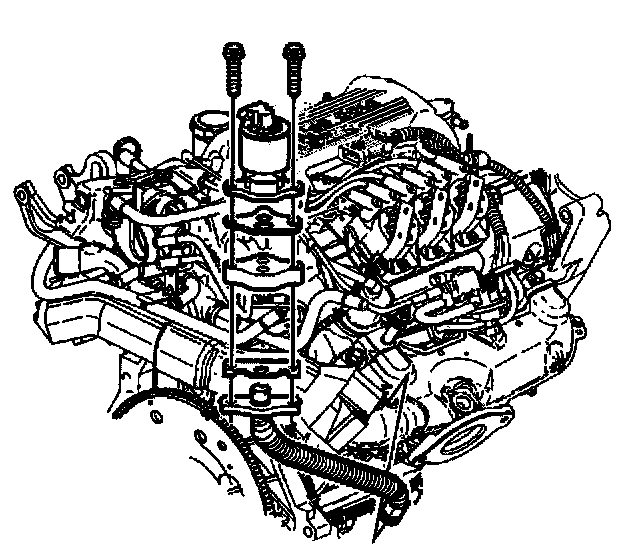

9. Install the EGR valve and gasket.
10. Install the EGR valve bolts.
^ Tighten the EGR valve bolts to 25 Nm (18 ft. lbs.).

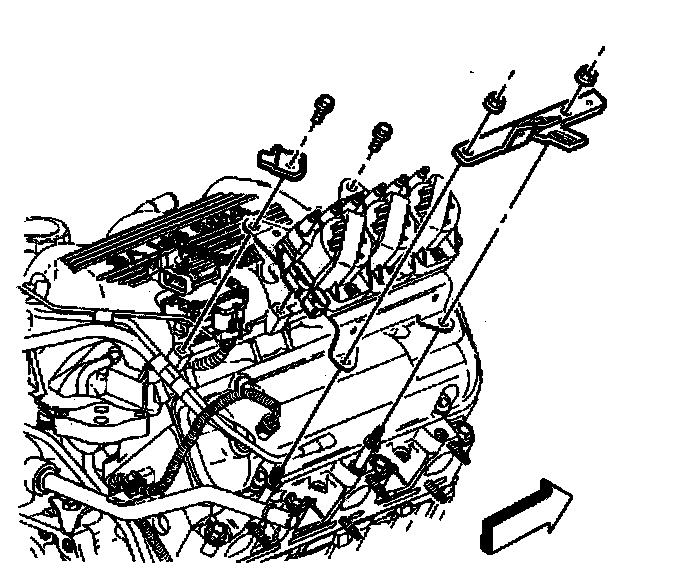

11. Install the MAP sensor.
12. Install the MAP sensor bolts.
^ Tighten the MAP sensor bolts to 5 Nm (44 inch lbs.).

13. Install the MAP sensor electrical connector.

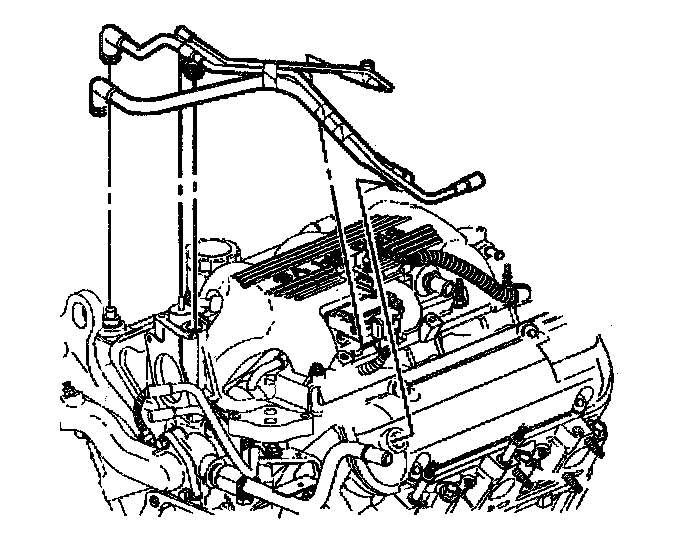

14. Install the vacuum lines to the upper intake manifold.
