Valve Spring: Service and Repair

REMOVAL PROCEDURE

^ Tools Required
- J 22794 Spark Plug Port Adapter
- J 5892-D Valve Spring Compressor
- J 38606 Valve Spring Compressor

CAUTION: Refer to Battery Disconnect Caution In Service Precautions.





1. Disconnect the negative battery cable.
2. Remove the valve rocker cover. Refer to Valve Rocker Arm Cover Replacement.
3. Remove the spark plug. Refer to Spark Plugs in Ignition System.
4. Remove the rocker arm. Refer to Valve Rocker Arm and Push Rod Replacement.
5. Install the J 22794 to the spark plug port.
6. Apply compressed air in order to hold the valves in place.
7. Compress the valve spring. Use the J 5892-D or the J 38606.

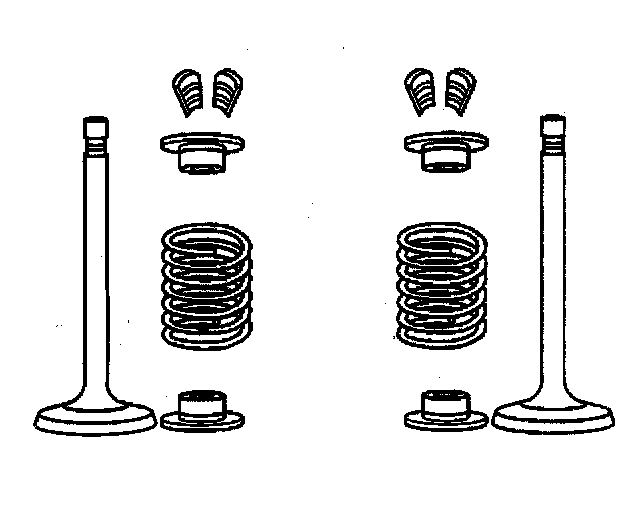

8. Measure the following items:
^ Valve locks
^ Valve cap
^ Valve spring

9. Remove the valve stem oil seal.

INSTALLATION PROCEDURE

^ Tools Required
- J 5892-D Valve Spring Compressor
- J 38606 Valve Spring Compressor





1. Install the valve stem oil seal. Use the plastic sleeve provided. Press the oil seal over the valve guide boss.

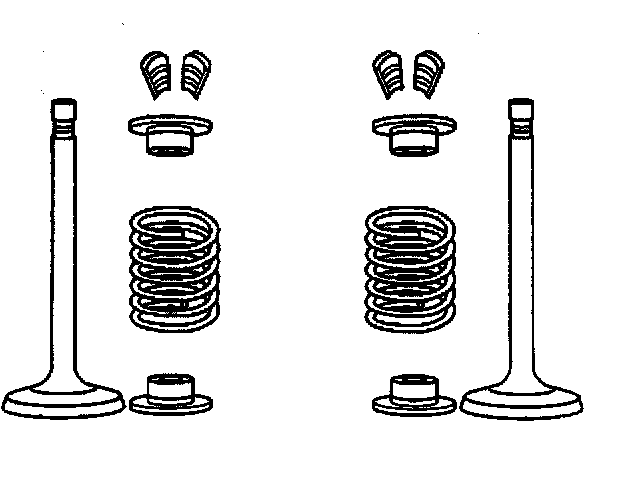

2. Assemble the following items:
^ Spring seat
^ Valve spring
^ Valve cap

3. Compress the valve spring. Use the J 38606 or the J 5892-D.
4. Install the valve locks. Hold the valve locks in place with grease if needed.
5. Release the valve spring. Ensure that the valve locks are seated.
6. Install the spark plug. Refer to Spark Plugs in Ignition System.
7. Install the rocker arm. Refer to Valve Rocker Arm and Push Rod Replacement.
8. Install the valve rocker cover. Refer to Valve Rocker Arm Cover Replacement.
9. Connect the negative battery cable.
