Radiator Lower Mounting Panel Replacement

REMOVAL PROCEDURE





1. Remove the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Raise the vehicle. Refer to Raising and Supporting the Vehicle in General Information.

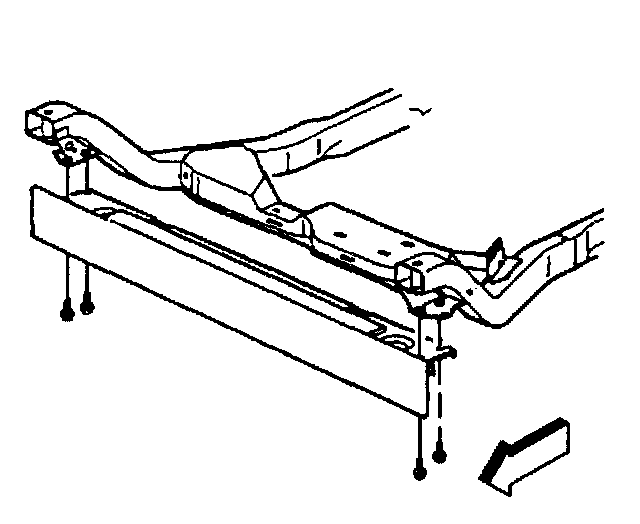

3. Remove the bolts from the lower radiator mounting panel/deflector.
4. Remove the mounting panel/deflector. Have an assistant support the CRFM assembly.

INSTALLATION PROCEDURE

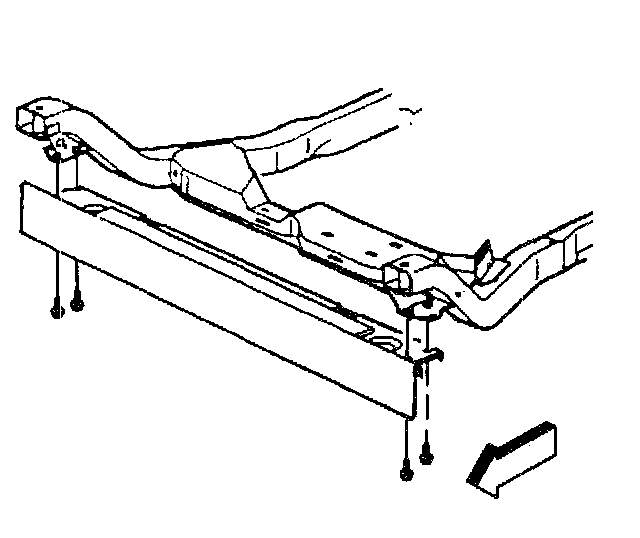

1. Install the mounting panel/deflector.
2. Install the bolts to the lower panel/deflector.
^ Tighten the bolts to 10 Nm (89 inch lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Lower the vehicle.
4. Connect the negative battery cable.
^ Tighten the bolt to 16 Nm (12 ft. lbs.).
