Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signals
>>
System Diagram
>>
Lamp Assembly
>>
LH Rear
LH Rear

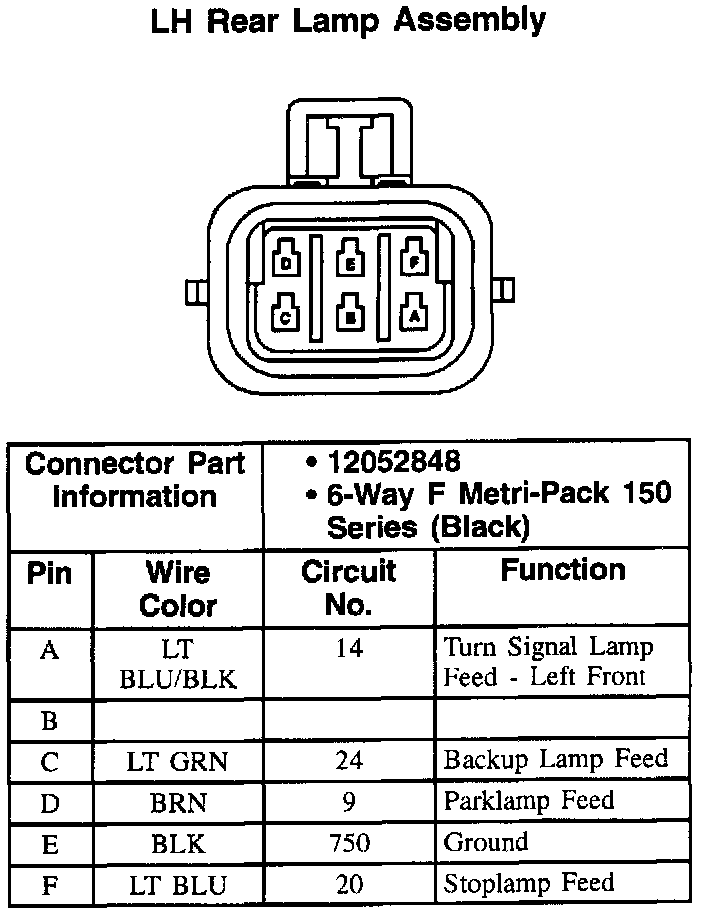

LH Rear Lamp Assembly:
