Hydraulic Control Assembly - Antilock Brakes
>>
ABS Solenoid
ABS Solenoid

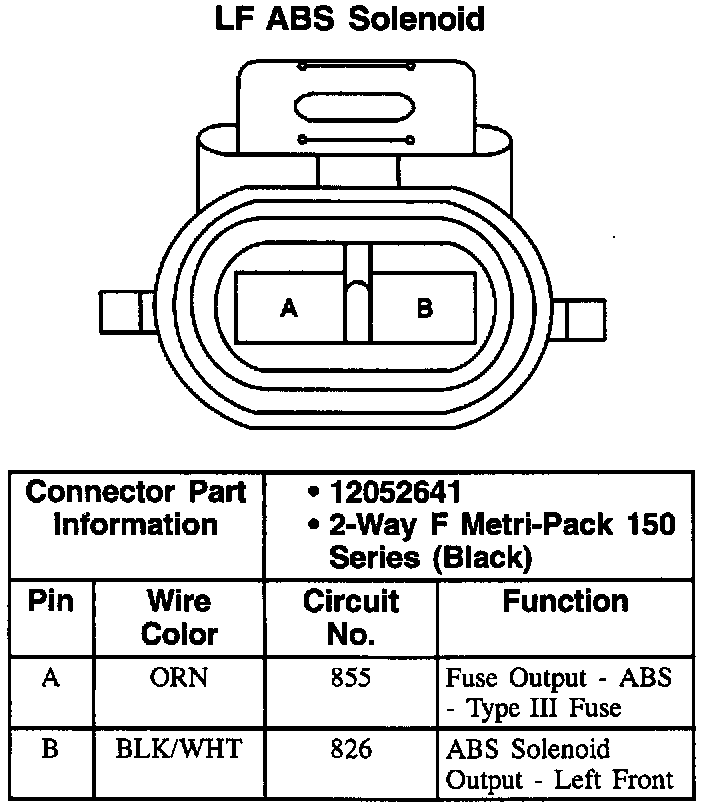

LF ABS Solenoid:

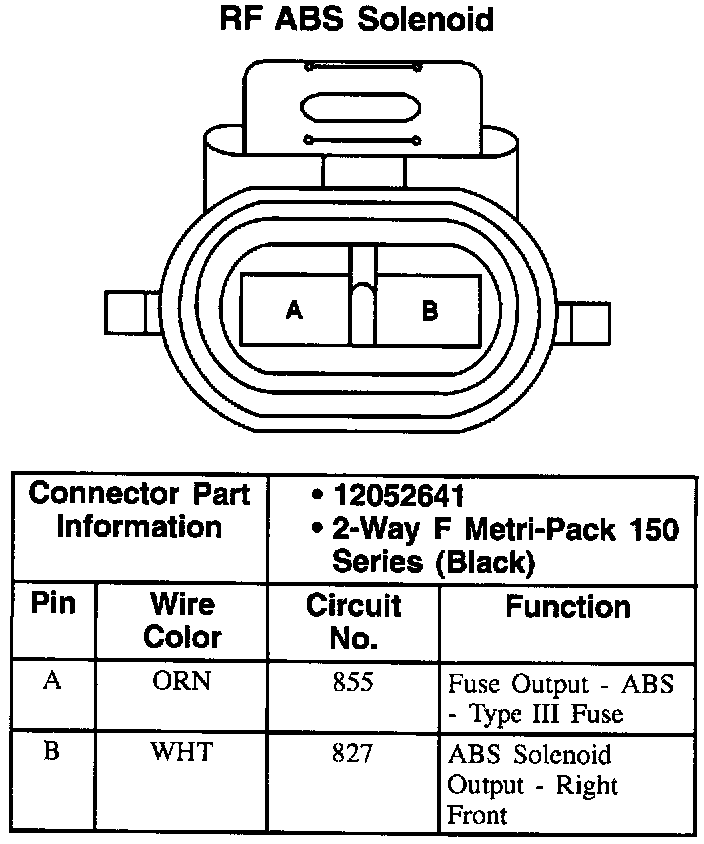

RF ABS Solenoid:
