Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Hydraulic Control Assembly - Antilock Brakes
>>

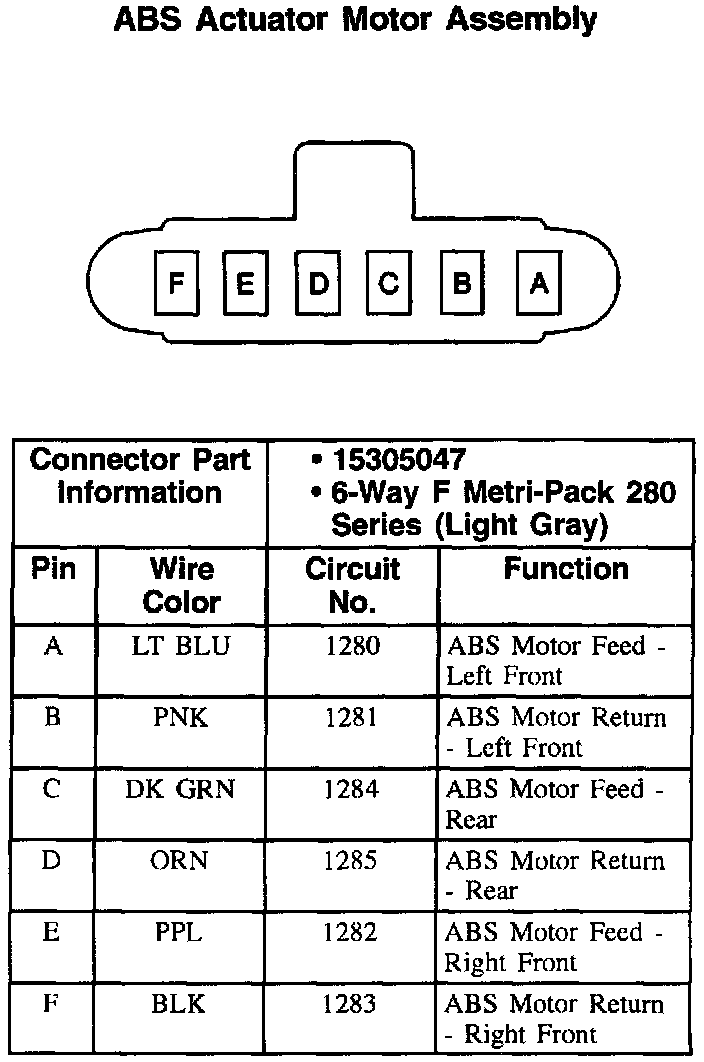

ABS Actuator Motor Assembly
ABS Actuator Motor Assembly
ABS Actuator Motor Assembly:
