Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
C7
C7

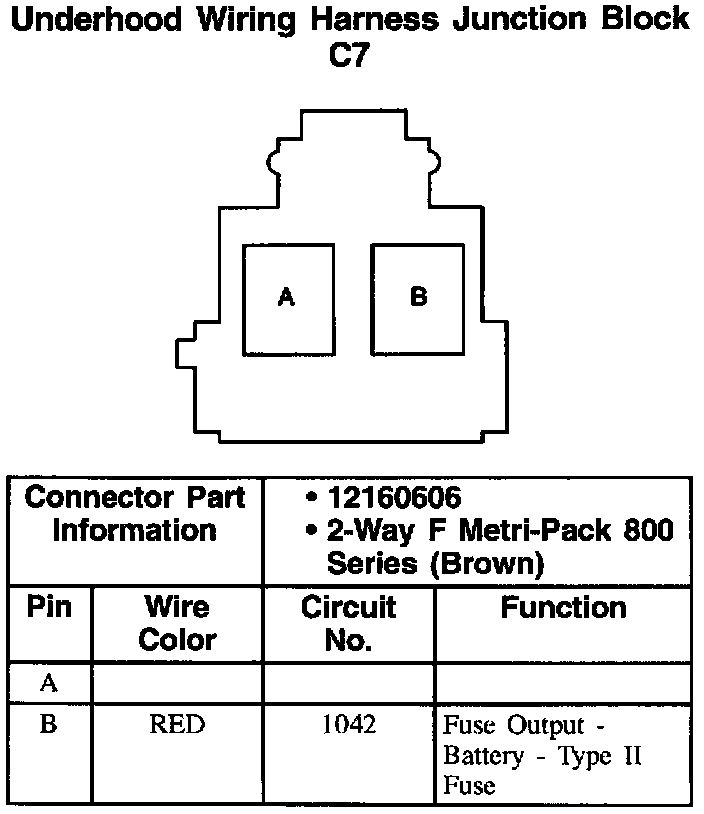

Underhood Wiring Harness Junction Block: C7:
