Pinout Description

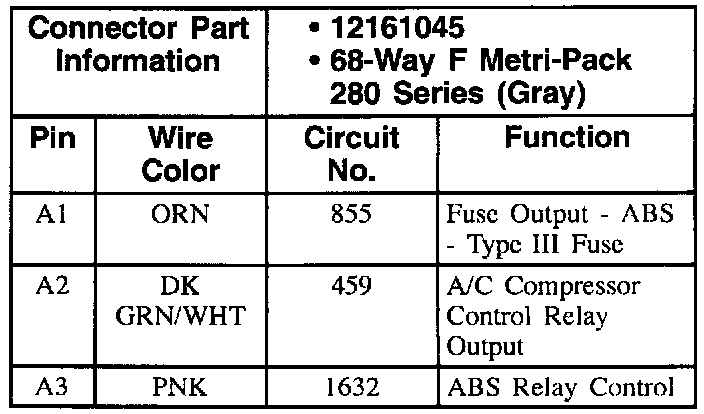

Underhood Wiring Harness Junction Block: C1 (Part 1 Of 5):

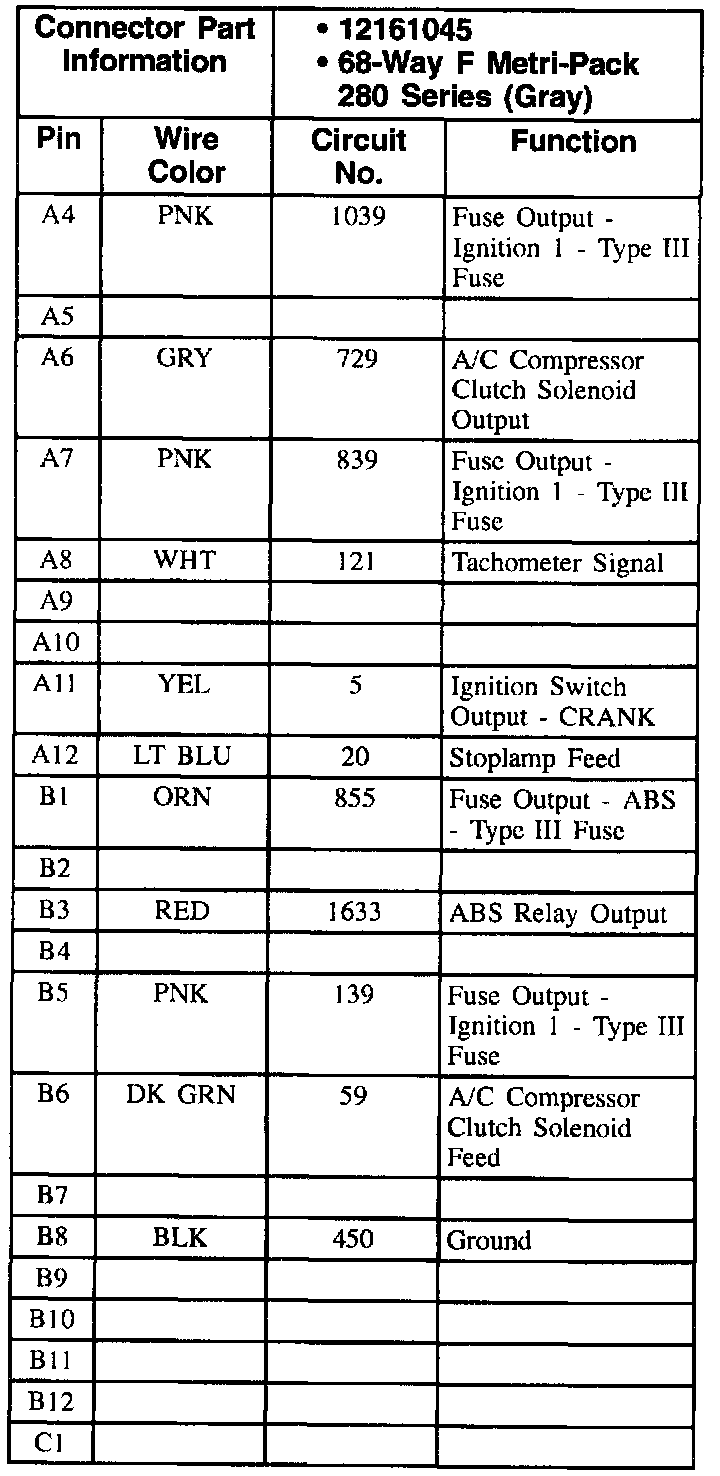

Underhood Wiring Harness Junction Block: C1 (Part 2 Of 5):

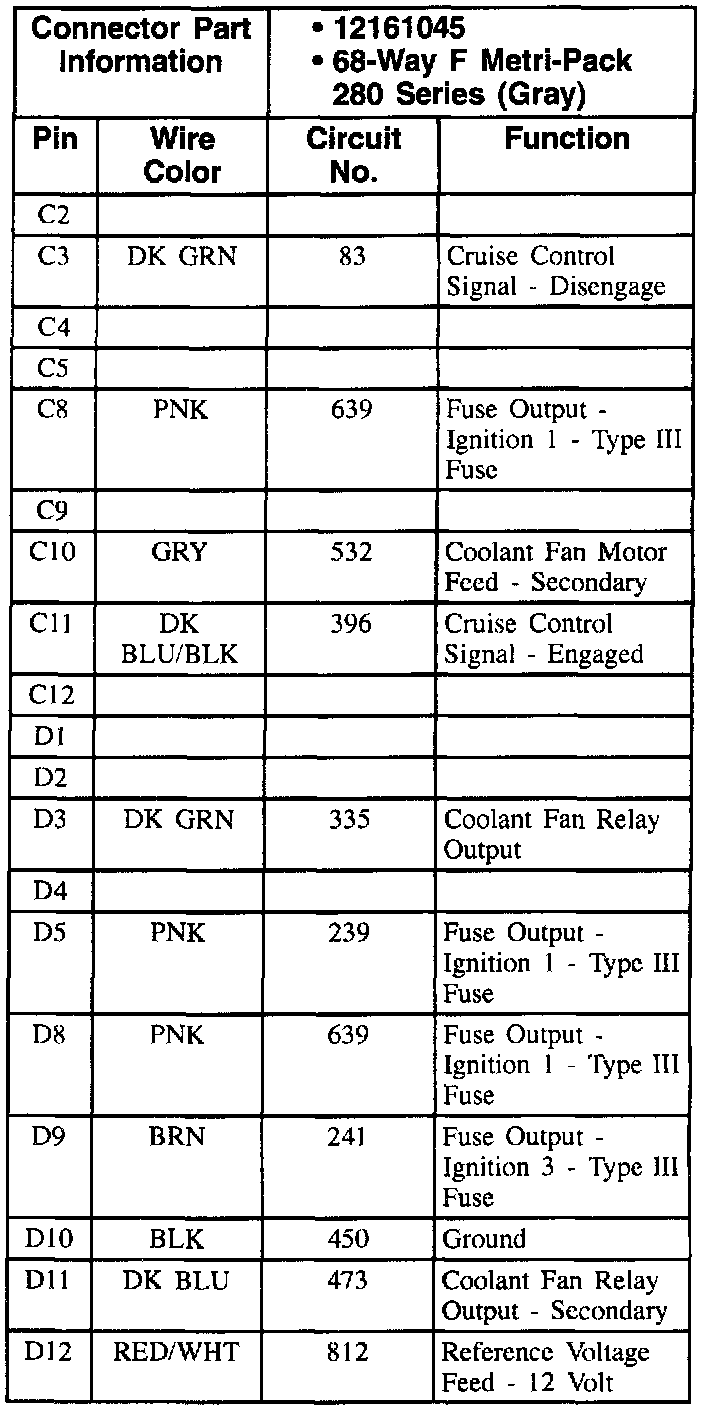

Underhood Wiring Harness Junction Block: C1 (Part 3 Of 5):

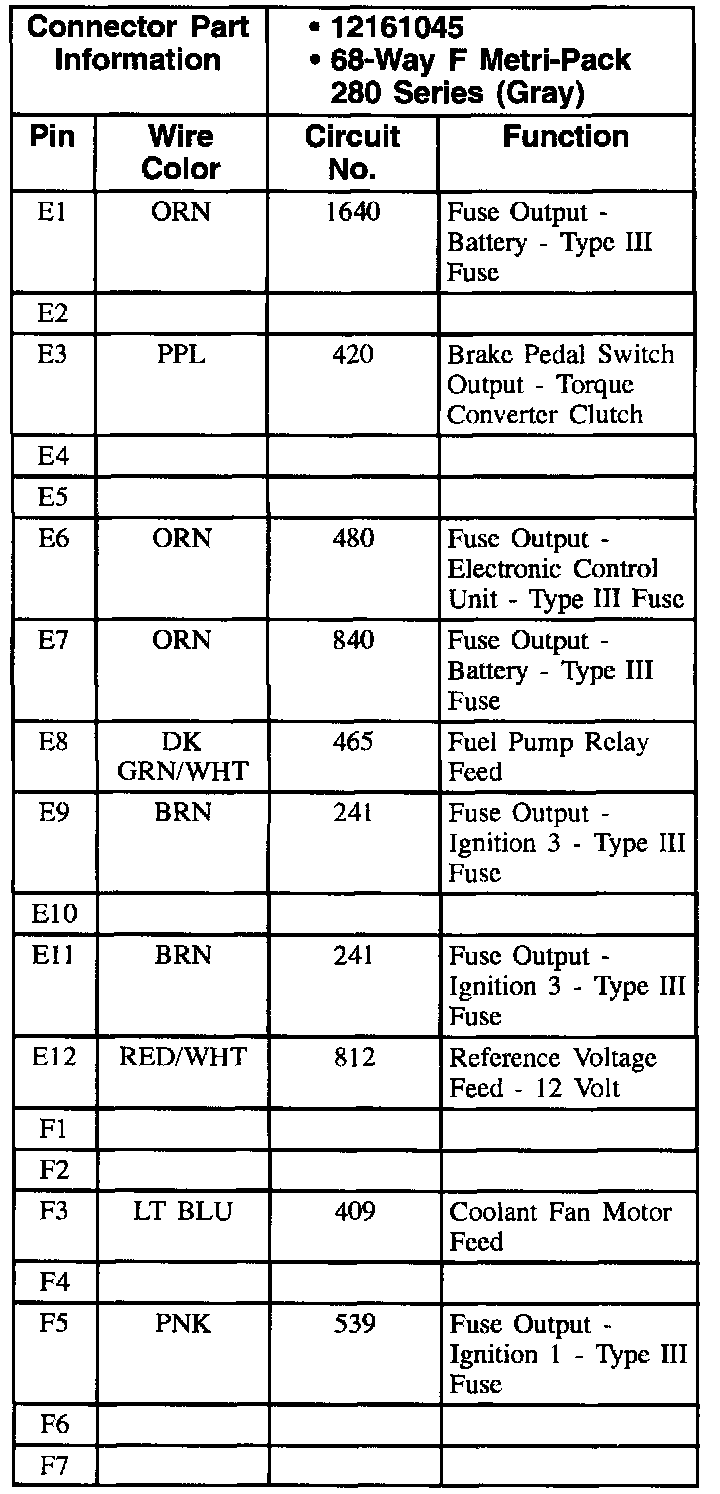

Underhood Wiring Harness Junction Block: C1 (Part 4 Of 5):

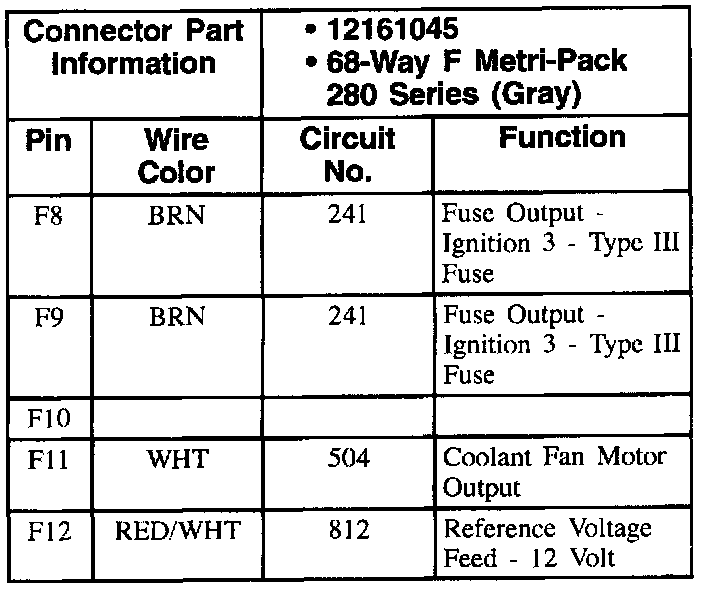

Underhood Wiring Harness Junction Block: C1 (Part 5 Of 5):
