Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Components >> Motors >> Power Window Motor >> LF

LF

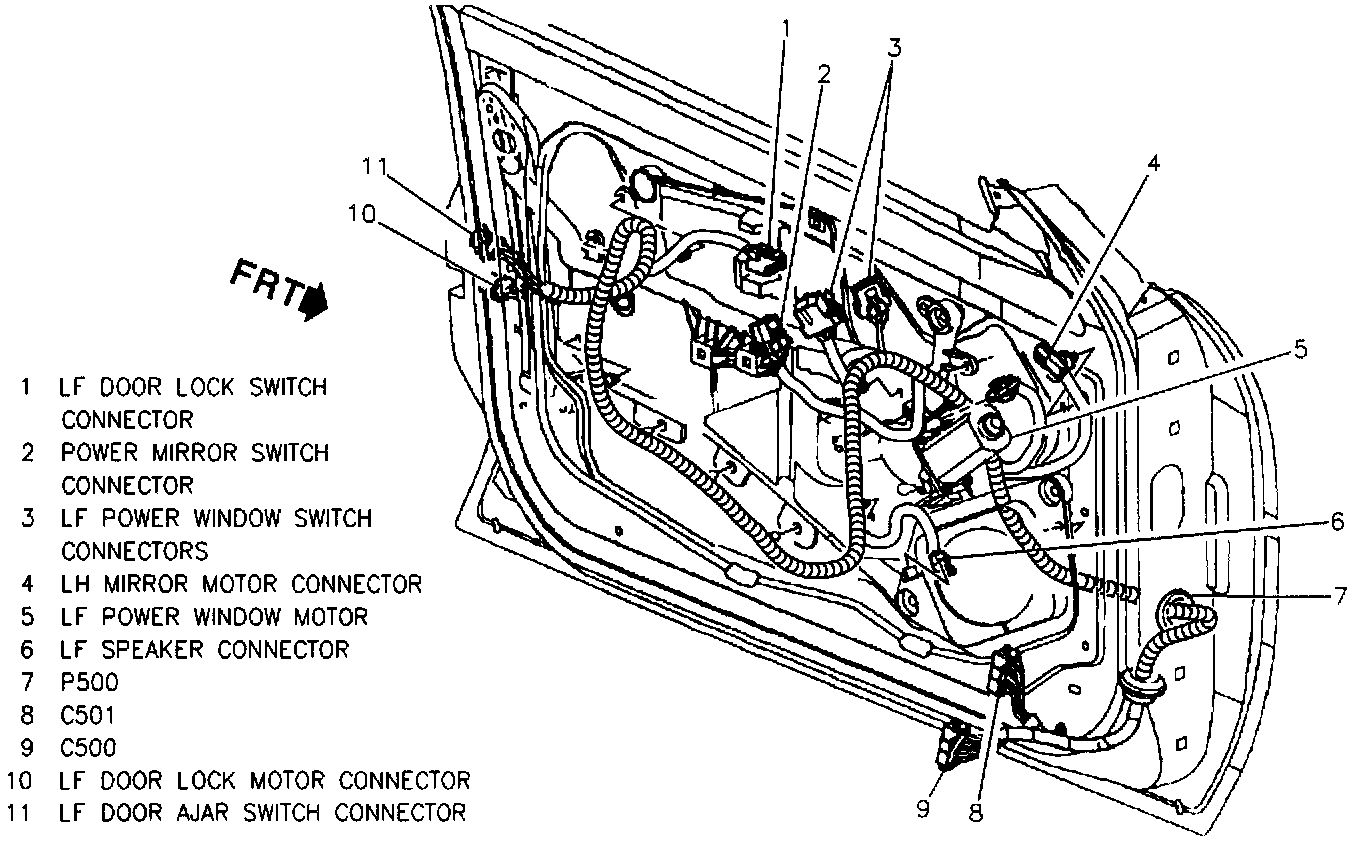

LF Door:



LR Door (RR Similar):



RF Door:
