Bracket Replacement

REMOVAL PROCEDURE
1. Remove the caliper assembly.

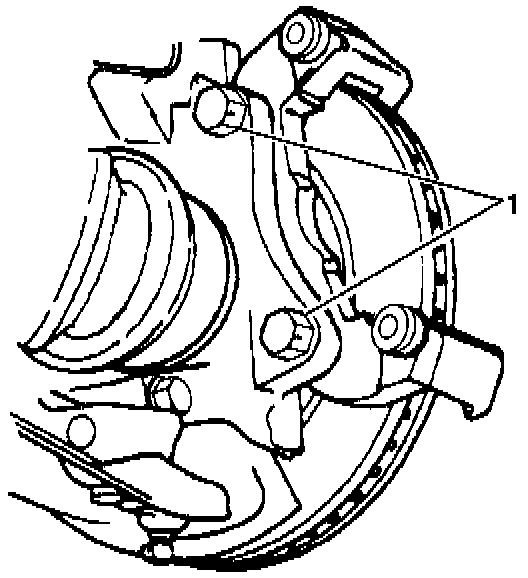

2. Remove the knuckle bracket (1).





INSTALLATION PROCEDURE

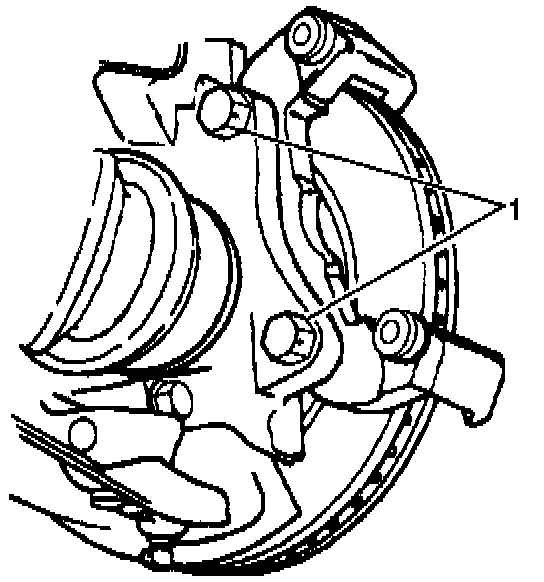

1. Install the knuckle bracket (1).
2. Install the caliper assembly.
