ABS Main Relay: Locations

Electronic Brake Contol (ABS) Relay

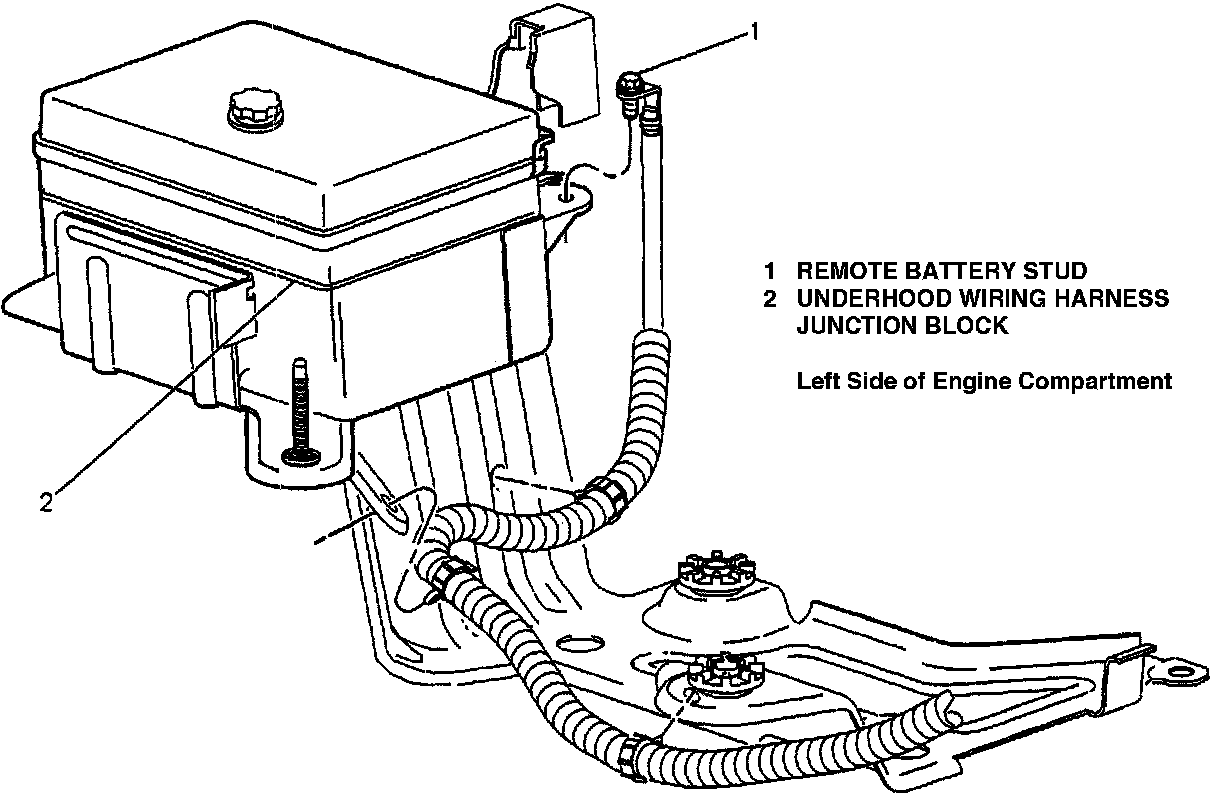

Left Side Of Engine Compartment:

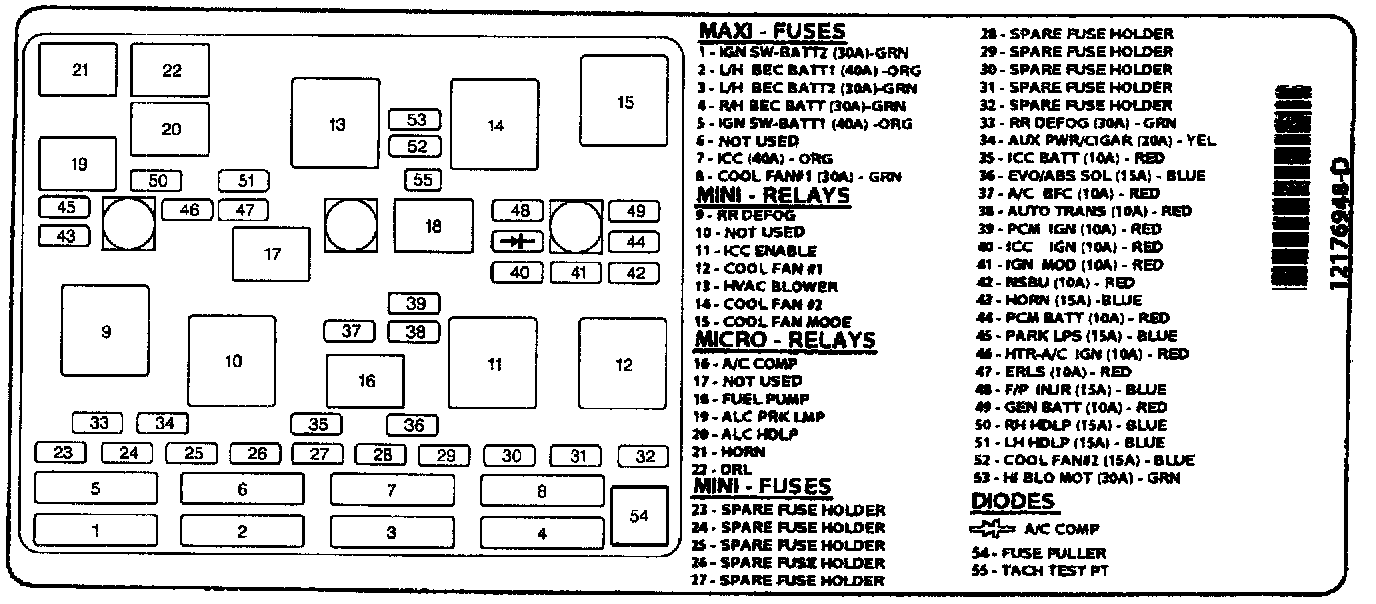

Underhood Wiring Harness Junction Block:

The Electronic Brake Control Relay is located in the Underhood Bussed Electical Center (U/H BEC).
