Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Sound Insulators
Sound Insulators

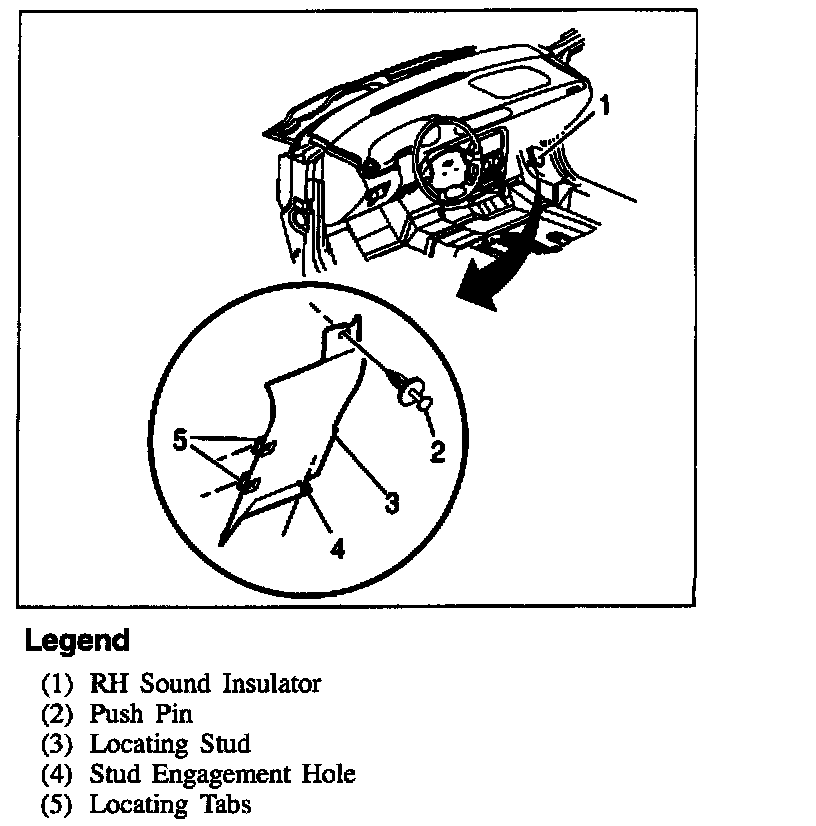

Sound Insulator RH:

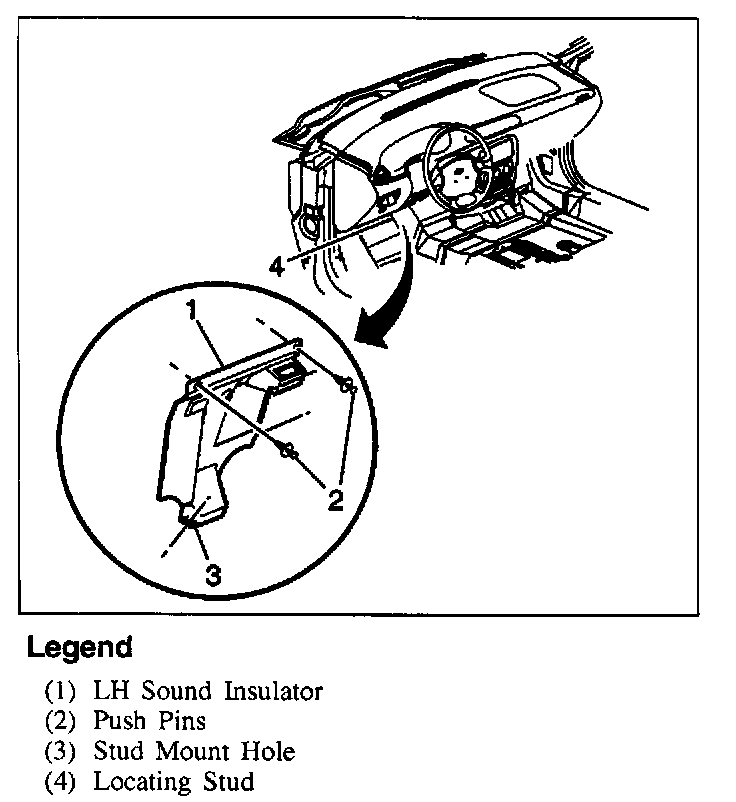

Sound Insulator LH:
REMOVE OR DISCONNECT
1.
Screws to instrument panel.
2.
Sound insulator.
INSTALL OR CONNECT
1.
Sound insulator to instrument panel.
2.
Screws to instrument panel.
