Body Control Module (BCM)

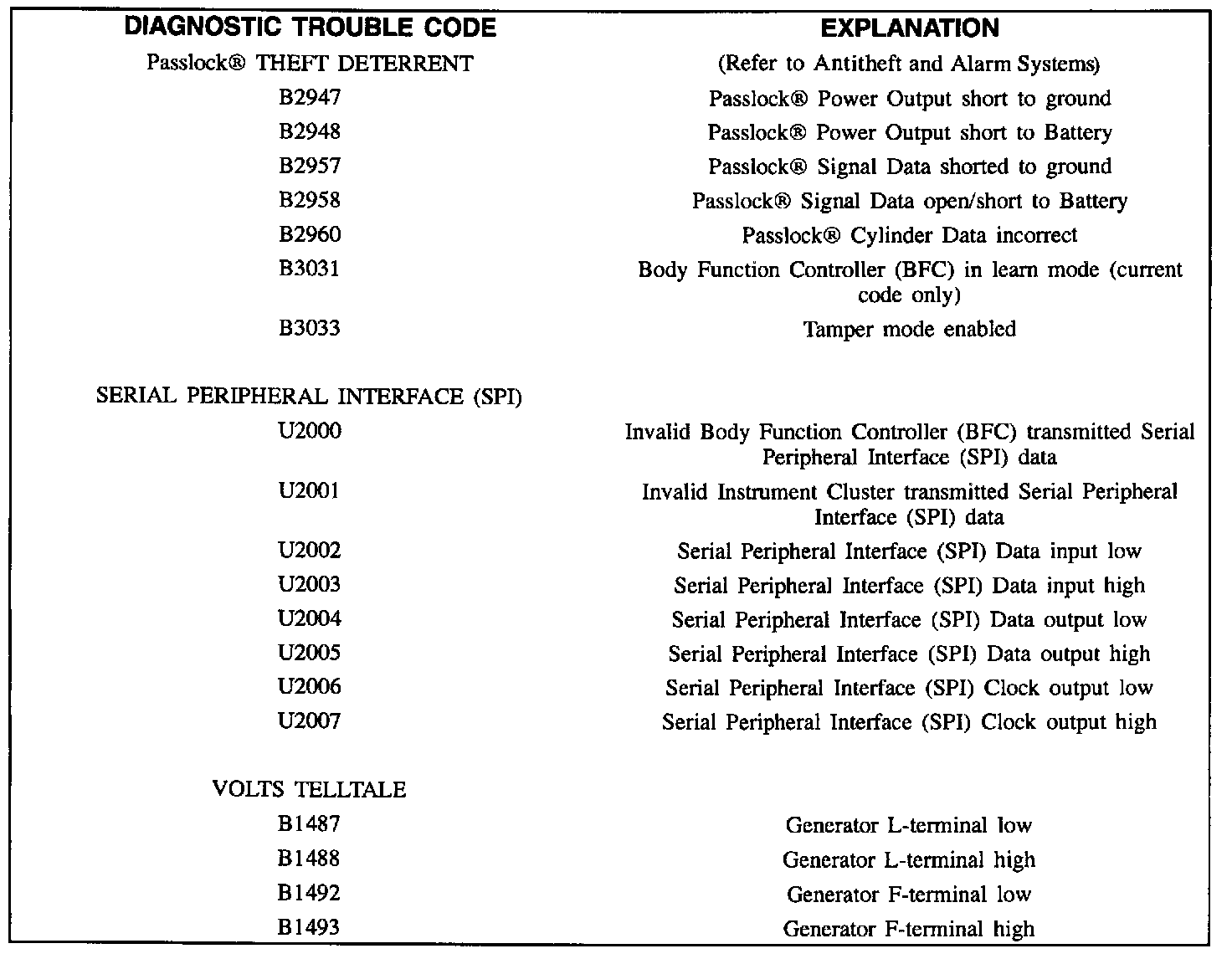

DTC List (Part 1 Of 2):

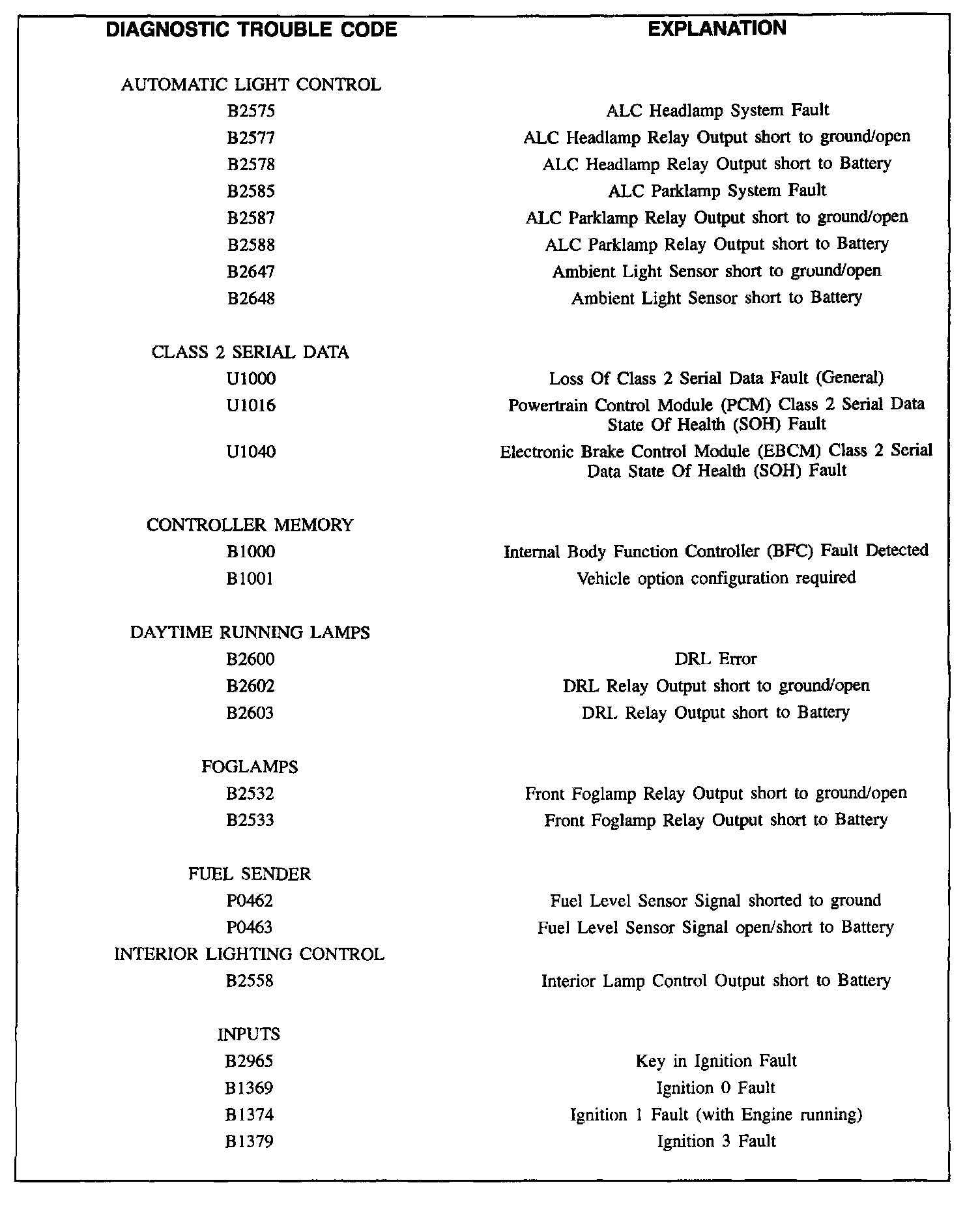

DTC List (Part 2 Of 2):

IMPORTANT
Do NOT replace the Body Function Controller (BFC) unless a Diagnostic Trouble Code (DTC) remains current after all DTC tables have been executed. NEVER replace the BFC based on History codes.

The BFC is connected to the Class 2 serial data link and is capable of setting Diagnostic Trouble Codes. The history DTC codes (a history DTC code is a fault that disappears in the next ignition cycle) can be especially useful in diagnosing an intermittent problem. An explanation of these are given in DTC Table.
