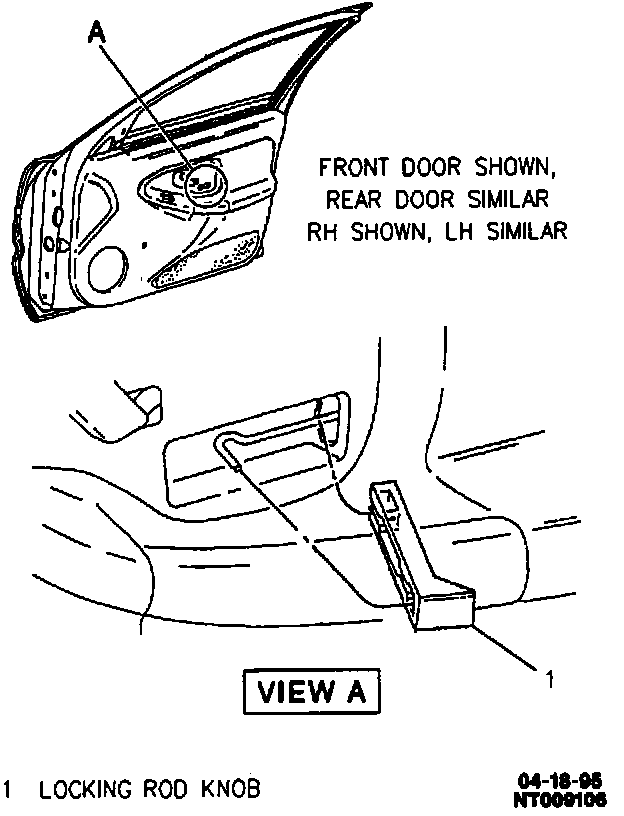

Front Door Locking Rod Knob

Locking Rod Knob:

Remove or Disconnect

1. Locking rod knob by pulling outward to disengage from locking rod.

Install or Connect

1. Locking rod knob by positioning onto locking rod and slide rearward.
