Shift Control (Shift Control)(2)

REMOVAL PROCEDURE





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the shift cables.

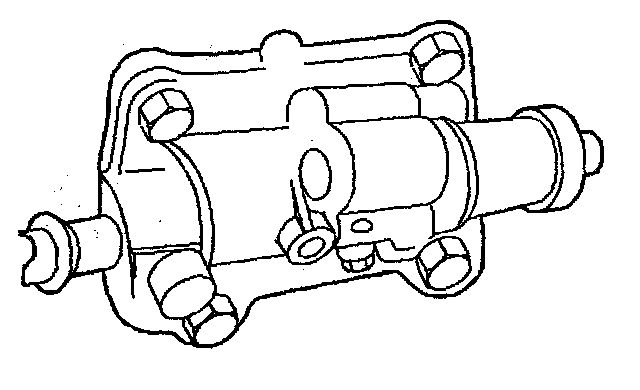

3. Remove the shift control box bolts.
4. Remove the shift control box.
5. Disassemble the shift control box.





6. Assemble the shift control box using the following procedure:
6.1. Assemble the stopper cam and the internal lever.
6.2. Install the stopper cam and internal lever to the shift lever assembly.

IMPORTANT: Align the serrations on the stopper cam and internal lever.





7. Inspect the alignment of the stopper cam (1) with the center on the internal lever.
8. Reverse the inhibitor mechanism for proper operation.
9. Install the new roll pin to the internal lever.

INSTALLATION PROCEDURE
1. Install the shift control box.

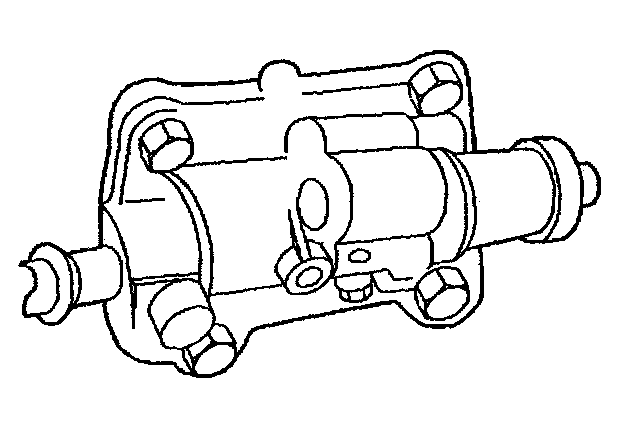

2. Install the shift control box bolts.
^ Tighten the bolts to 17 Nm (13 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the shift cables.
4. Inspect for proper shifting.
5. Connect the negative battery cable.
