Shift Control (Shift Control)

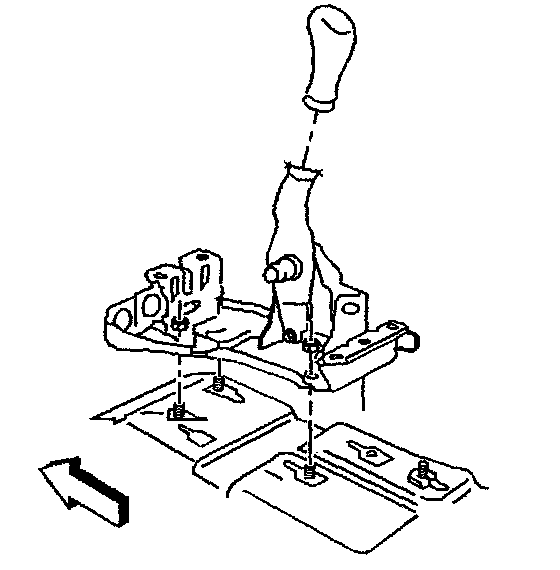

REMOVAL PROCEDURE





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Remove the following parts from the shift control:
2.1. The knob
2.2. The boot
2.3. The front console
3. Remove the shift cables from the pin on the shift control.
4. Remove the spring clip holding the cables to the shift control.
5. Remove the shift control.

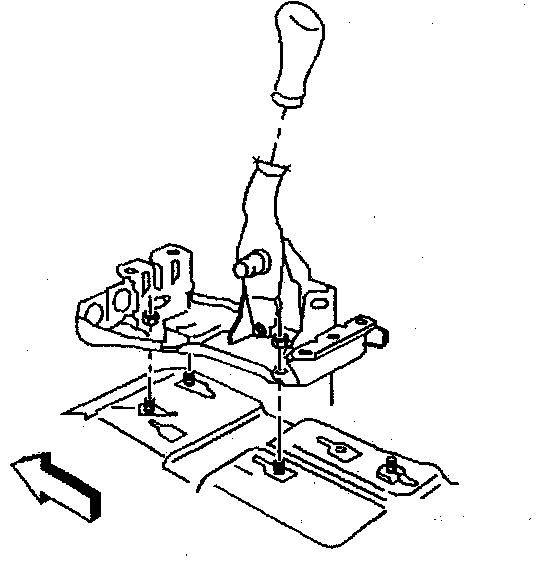

INSTALLATION PROCEDURE





1. Install the shift control.
2. Install the shift control nuts.
^ Tighten the nuts to 25 Nm (18 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.

3. Install the shift cables to the pin on the shift control.
4. Install the spring clip that holds the cables to the shift control.
5. Install the following parts on the shift control assembly:
5.1. The front console
5.2. The boot
5.3. The knob
6. Connect the negative battery cable.
