Flex Plate: Service and Repair

REMOVAL PROCEDURE





1. Raise the vehicle. Refer to Vehicle Lifting Caution in Service Precautions.

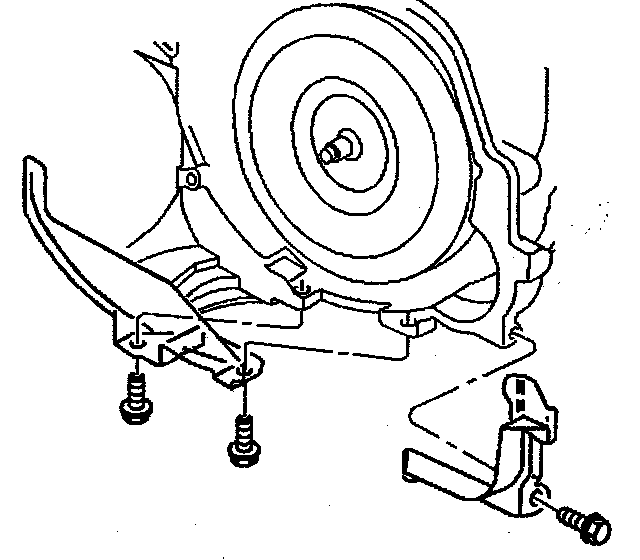

2. Remove the transmission converter cover bolts.
3. Remove the transmission converter cover.

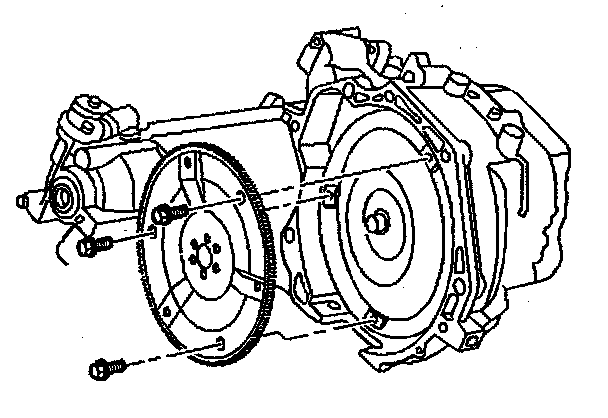

4. Mark the relationship of the converter to the flywheel.





5. Remove the three bolts that attach the converter to the flywheel.

INSTALLATION PROCEDURE

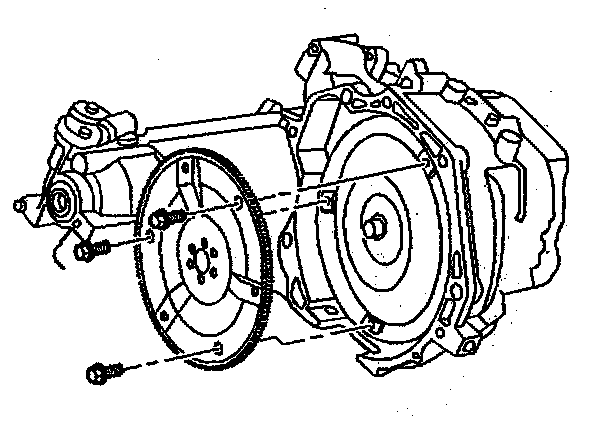

1. Install the bolts that attach the converter to the flywheel.
^ Tighten all of the bolts to 62 Nm (46 lb ft).
Re-torque the first bolt after all three have been tightened.

NOTICE: Refer to Fastener Notice in Service Precautions.

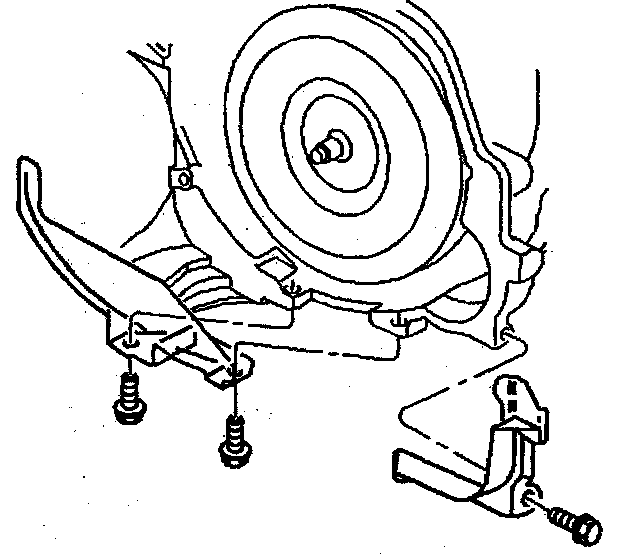

2. Install the converter cover.
3. Install the converter cover bolts.
^ Tighten the converter cover bolts to 13 Nm (115 lb in).

4. Lower the vehicle.
