Pressure Plate
Pressure Plate

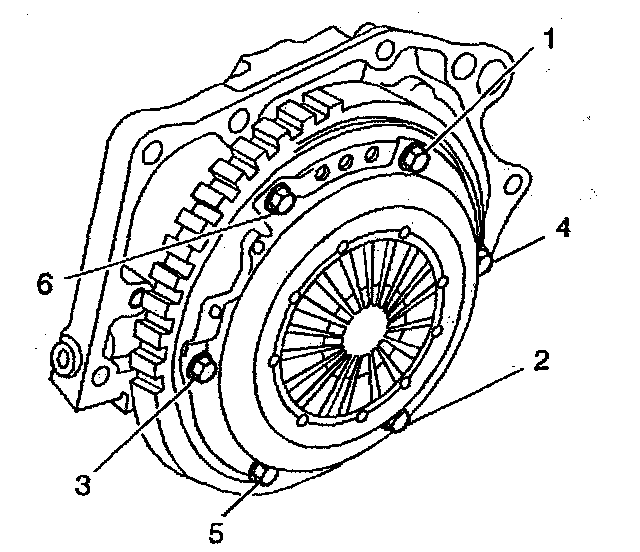

Clutch Cover to Flywheel Bolts.
2.4L Engine: 20 Nm (15 ft. lbs.) plus rotate 30°
3.1L Engine: 20 Nm (15 ft. lbs.) plus rotate 45°
