Transmission Mount: Service and Repair

REMOVAL PROCEDURE

^ Tools Required

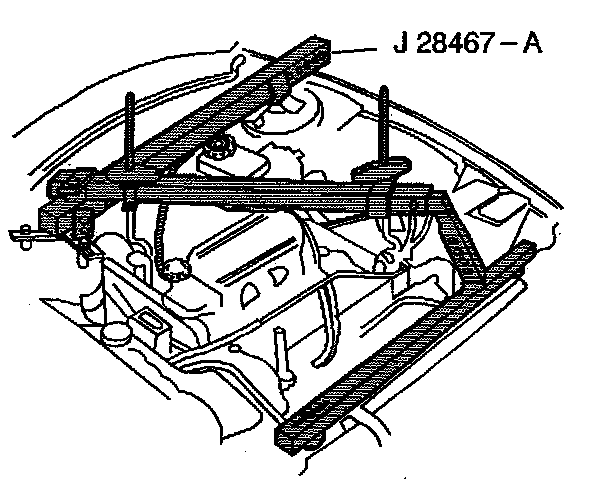

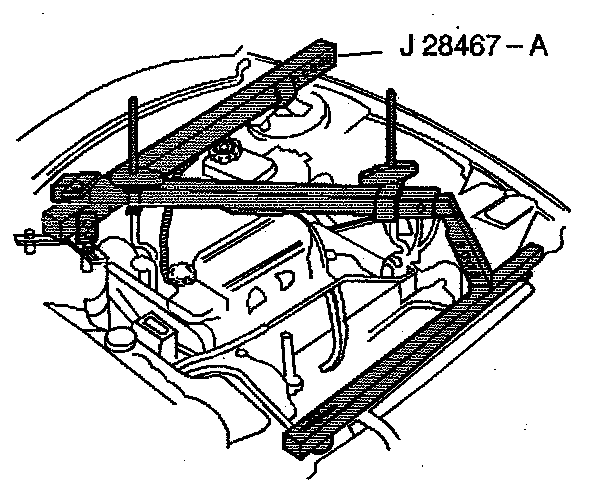

- J 28467-360 Engine Support Fixture





1. Disconnect the negative battery cable.

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

2. Install the J 28467-360 to the transmission.





3. Remove the upper transmission mount assembly bolts.
4. Raise the vehicle. Support the vehicle. Refer to Vehicle Lifting Caution in Service Precautions.
5. Remove the left front tire and the wheel assembly.
Refer to Wheel Removal in Wheels and Tires.
6. Remove the left front splash shield.





7. Remove the transmission mount expansion pipe bolt.





8. Remove the lower transmission mount assembly bolts.

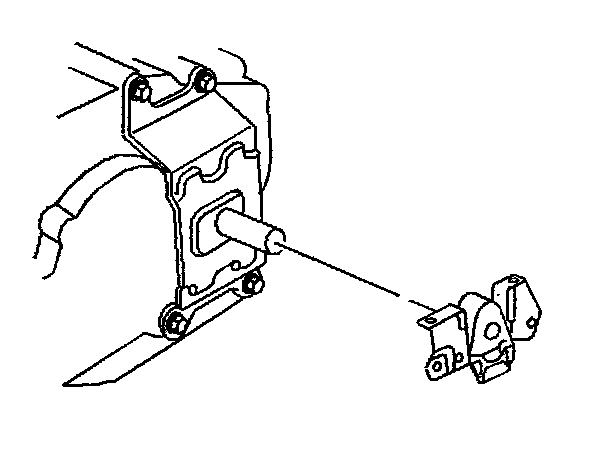

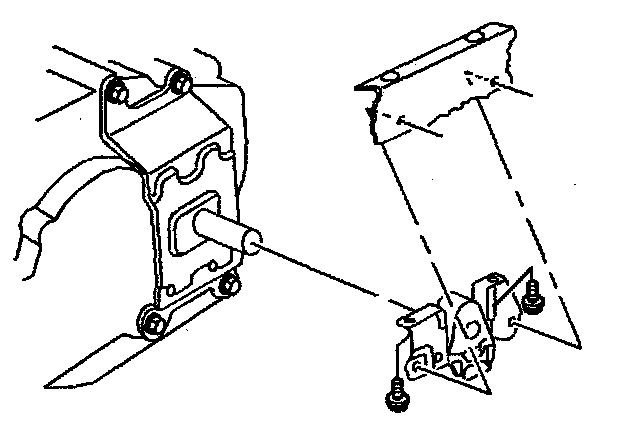

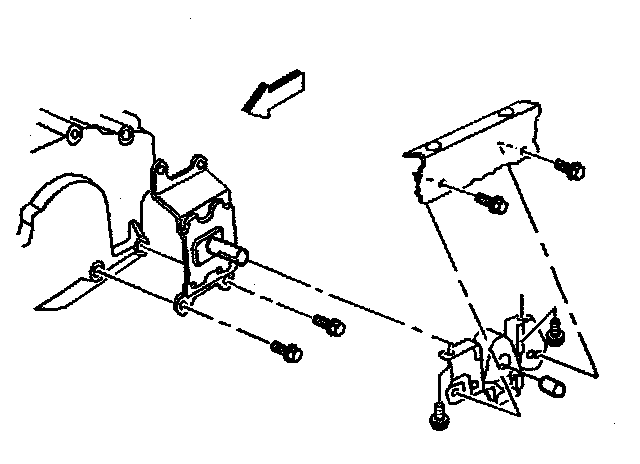

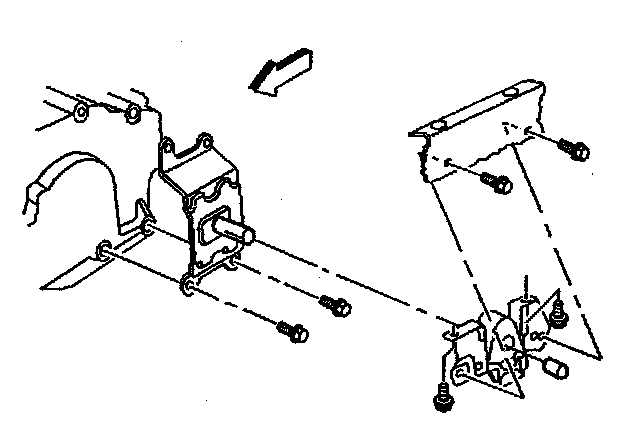

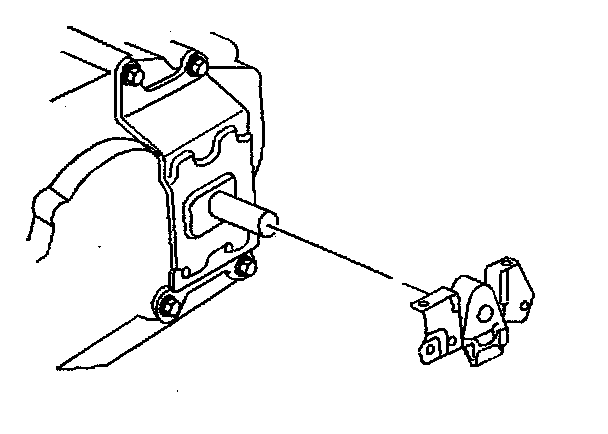

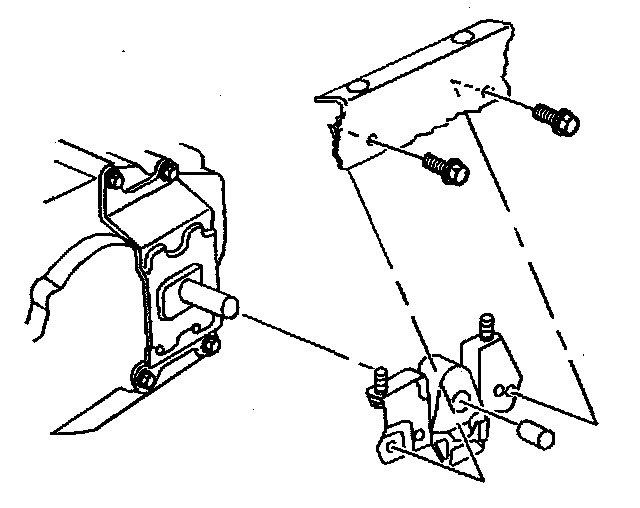

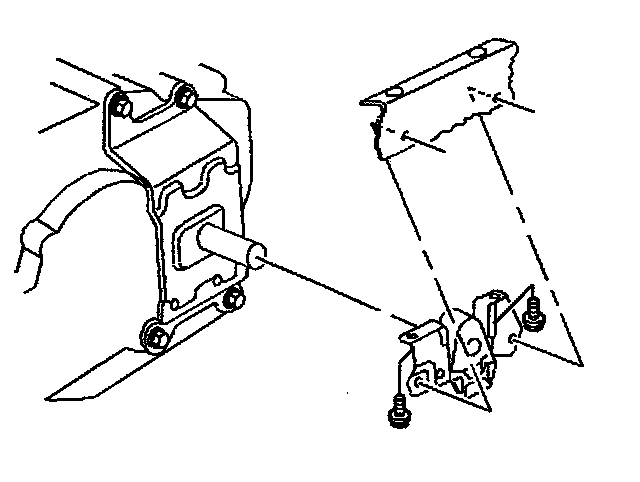

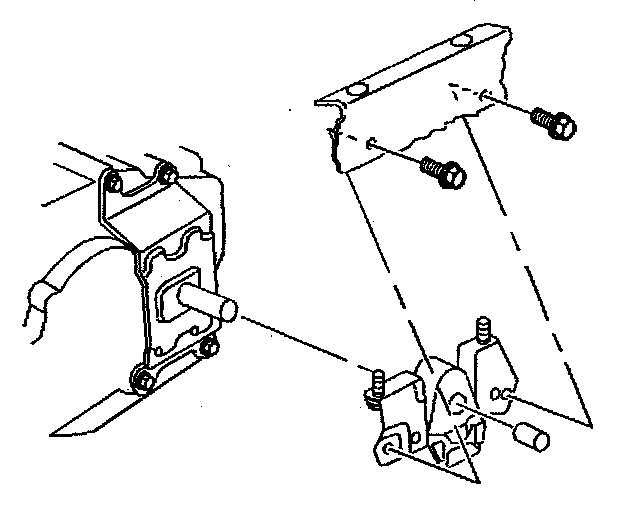

9. Remove the transmission mount.

INSTALLATION PROCEDURE





1. Install the transmission mount.





2. Install the upper transmission mount bolts.
^ Tighten the bolts to 66 Nm (49 ft. lbs.).

NOTICE: Refer to Fastener Notice in Service Precautions.





3. Install the transmission mount expansion plug.
^ Tighten the bolts to 55 Nm (41 ft. lbs.).

4. Install the left front splash shield.
5. Install the left front tire and the wheel assembly.
Refer to Wheel Installation in Wheels and Tires.
6. Lower the vehicle.





7. Install the lower transmission mount bolts.
^ Tighten the bolts to 66 Nm (49 ft. lbs.).





8. Remove the engine support fixture.
9. Connect the negative battery cable.
