Shift Cable: Service and Repair

REMOVAL PROCEDURE





1. Disconnect the negative battery cable,

CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

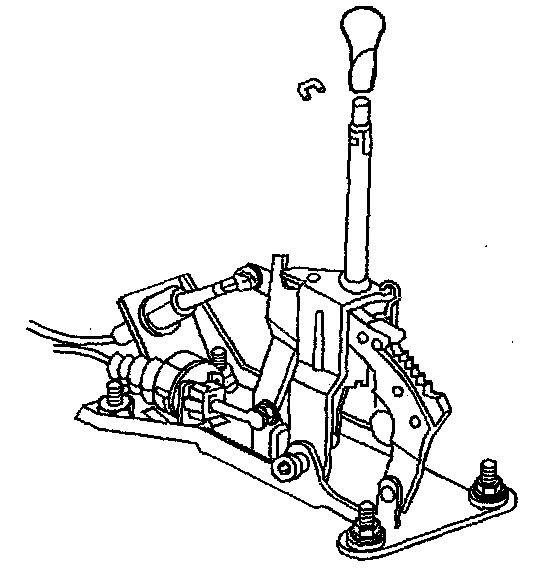

2. Remove the automatic transmission control lever handle.
3. Remove the console.

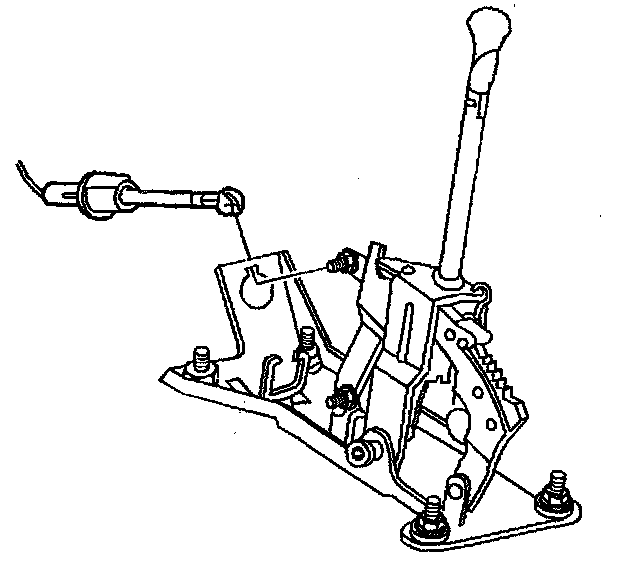

4. Remove the range select lever cable from the automatic transmission control.
5. Remove the electrical connector.

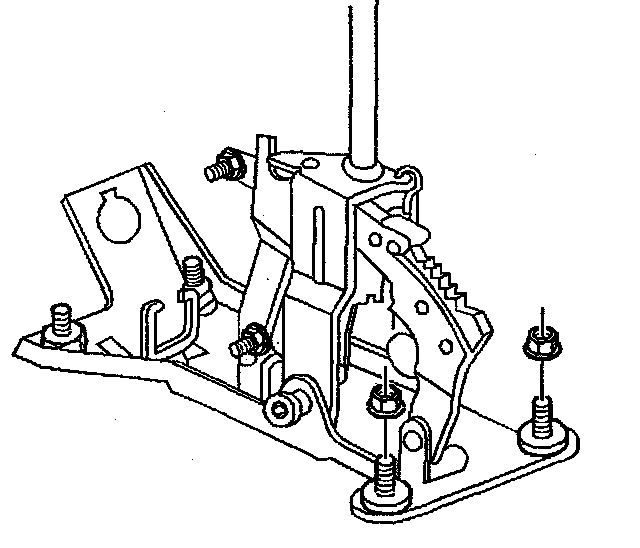

6. Remove the automatic transmission control bolts.
7. Remove the automatic transmission control.

INSTALLATION PROCEDURE





1. Install the automatic transmission control.

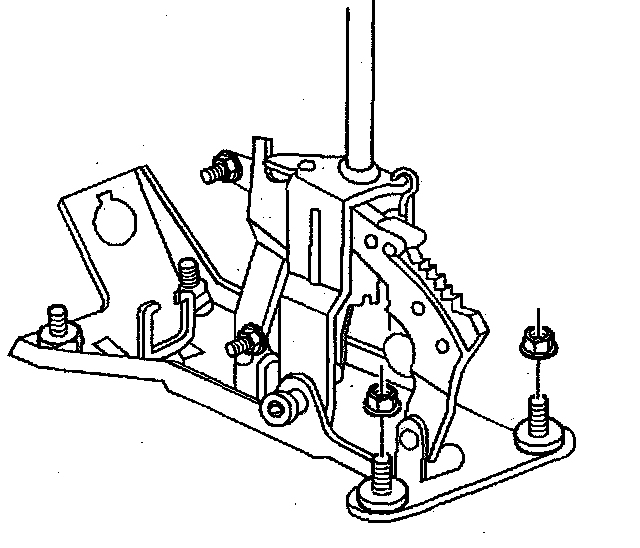

2. Install the automatic transmission control bolts.
3. Install the electrical connector.

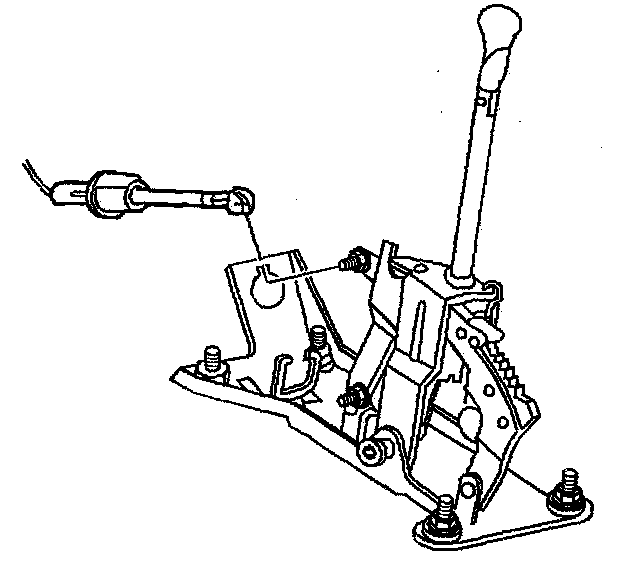

4. Install the range select lever cable to the automatic transmission control.
5. Install the console.

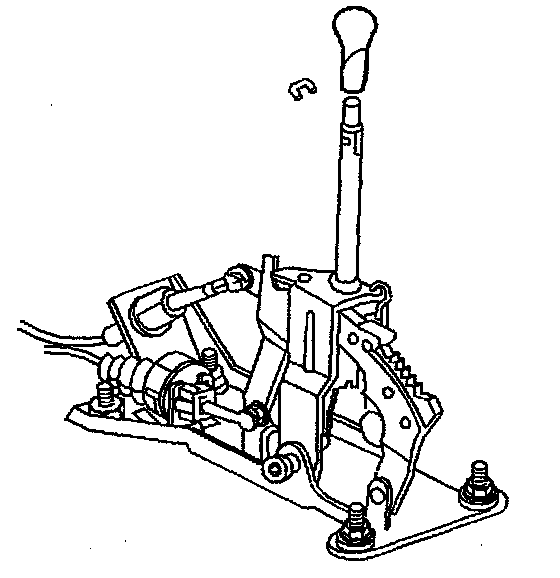

6. Install the automatic transmission control lever handle.
7. Connect the negative battery cable.
