Shift Cable: Adjustments

REMOVAL PROCEDURE





1. Disconnect the negative battery cable. Refer to Battery Disconnect Caution in Service Precautions.
2. Remove the automatic transmission range select lever cable from the selector lever.

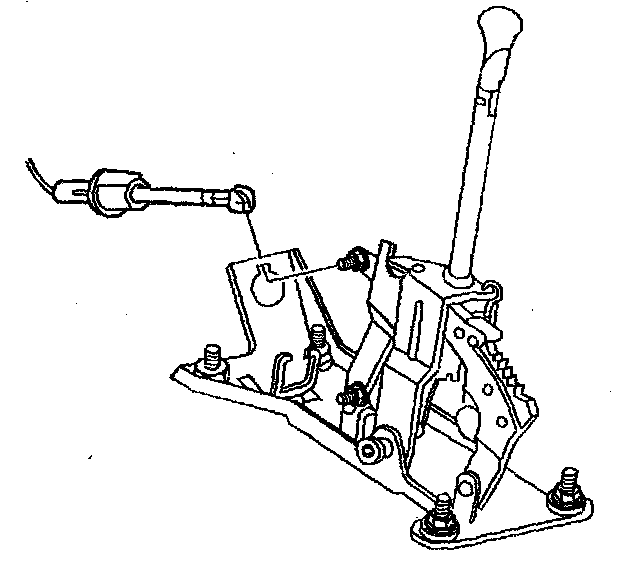

3. Remove the range select lever cable from the cable bracket.
4. Remove the center console.

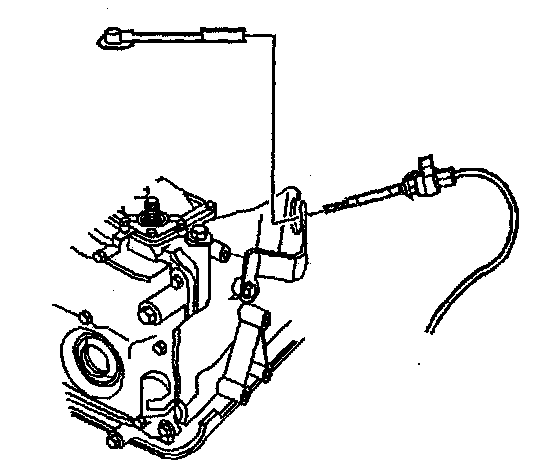

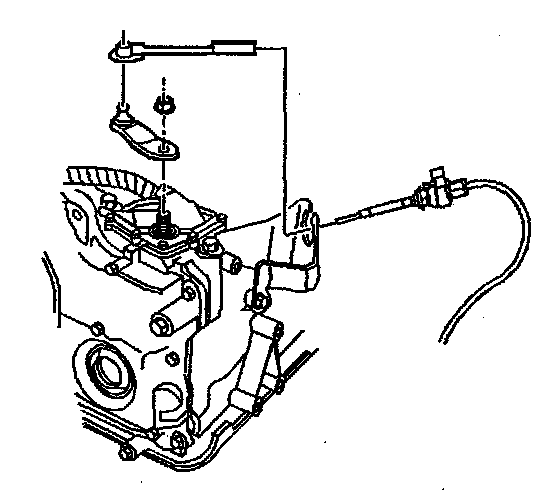

5. Remove the range select lever cable from the automatic transmission control.
6. Remove the cable grommet at the cowl.
7. Remove the cable from the vehicle.

INSTALLATION PROCEDURE





1. Install the cable to the vehicle through the cowl and the carpet.
2. Install the cable grommet in the cowl.
3. Install the cable grommet bolts in the cowl.
^ Tighten the bolts to 1.9 Nm (17 lb in).

NOTICE: Refer to Fastener Notice in Service Precautions.

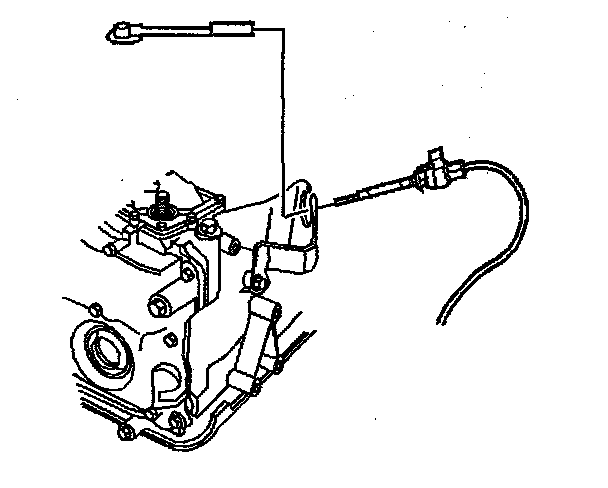

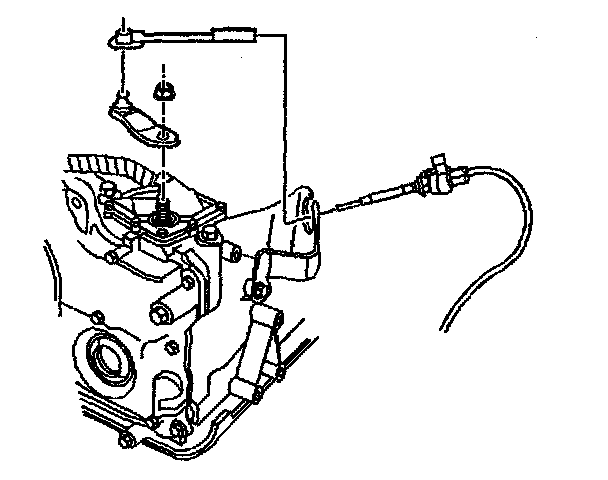

4. Install the range select lever cable at the automatic transmission control.
5. Install the center console.

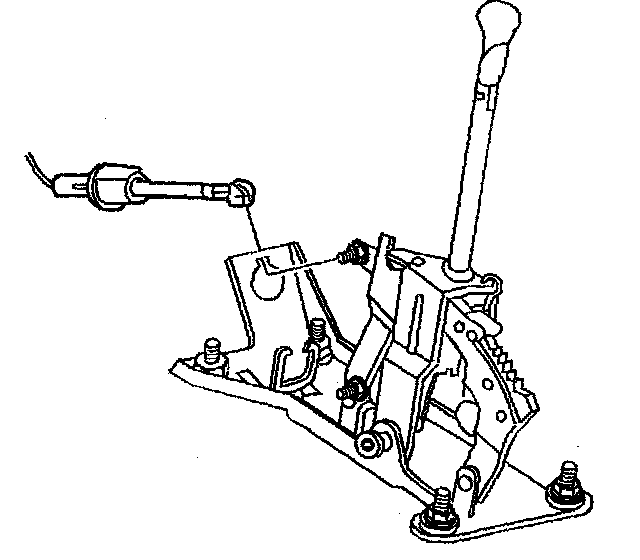

6. Install the range select lever cable to the cable bracket.





7. Install the range select lever cable to the selector lever.
8. Connect the negative battery cable.
9. Adjust the cable.
9.1. Place the shift lever in N (Neutral). Rotate the selector shaft clockwise from P (Park) through R (Reverse) into N (Neutral).
9.2. Place the shift control assembly in N (Neutral).
9.3. Push the tab on the cable adjuster in order to adjust the cable in the cable mounting bracket.
