Stabilizer Link: Service and Repair

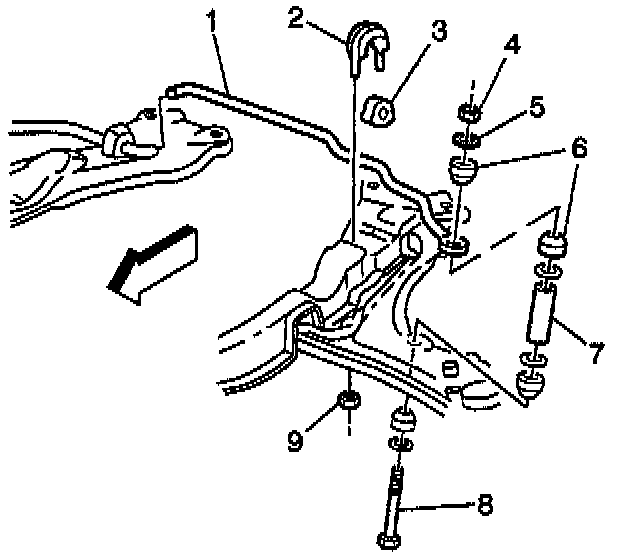

REMOVAL PROCEDURE
1. Remove the nut (4) attaching the stabilizer link to the stabilizer shaft (1).
2. Remove the bolt (8), the insulators (6), the spacer (7), and the washers system (5).

INSTALLATION PROCEDURE
1. Install the bolt (8), the insulators (6), the spacer (7), and the washers system (5).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the nut (4) attaching the stabilizer link to the stabilizer shaft (1).

Tighten
Tighten the nut to 30 Nm (22 ft. lbs.).
