Tilt Wheel Spring

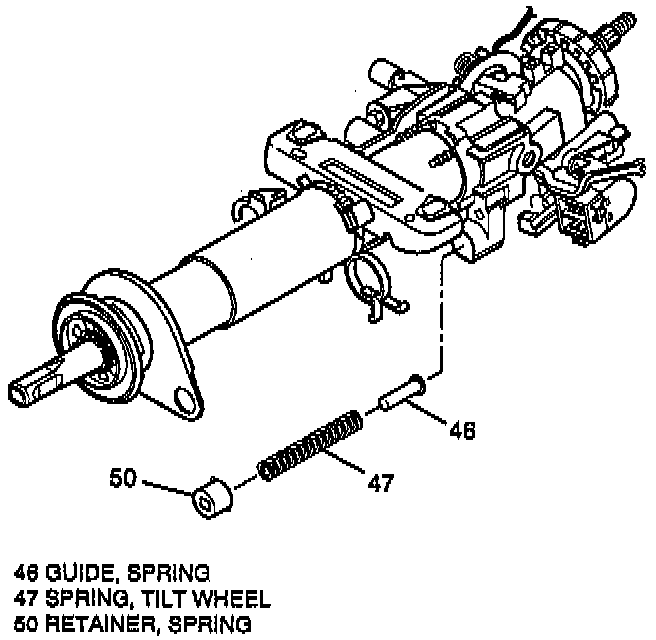

Tilt Steering Column (Part 1 Of 2):

Tilt Steering Column - Legend (Part 2 Of 2):

REMOVE OR DISCONNECT
1. Tilt column to "UP" position.
2. Spring retainer (50).
^ Using a cross recess screwdriver, push retainer down and turn counterclockwise to release.





3. Tilt wheel spring (47) and spring guide (46).

INSTALL OR CONNECT

NOTICE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and system.

1. Spring guide (46) to tilt wheel spring (47).
^ Lubricate with lithium grease.
2. Spring retainer (50).
^ Using a cross recess screwdriver push retainer down and turn clockwise to lock in place.
