Repair Instructions

REMOVAL PROCEDURE

^ Tools Required:
- J 38892 Ball Joint Separator.
- J 28733-A Front Hub Spindle Remover.

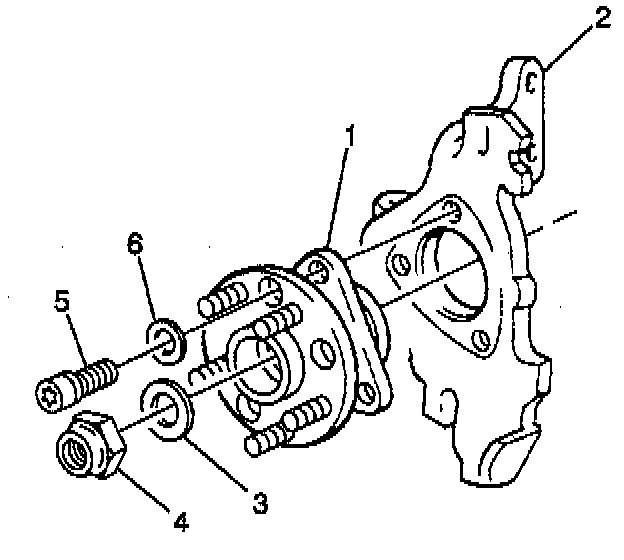

1. Remove the hub and bearing assembly (1). Refer to WHEEL BEARING AND WHEEL HUB REPLACEMENT.
2. Remove the bolts attaching the steering knuckle (2) to the strut.

INSTALLATION PROCEDURE
1. Install the steering knuckle (2) into the strut and install the steering knuckle-to-strut assembly bolts.

Tighten
Tighten the steering knuckle-to-strut assembly nuts to 180 Nm (133 ft. lbs.).

NOTICE: Always use the correct fastener in the proper location. When you replace a fastener, use ONLY the exact part number for that application. The manufacturer will call out those fasteners that require a replacement after removal. The manufacturer will also call out the fasteners that require thread lockers or thread sealant. UNLESS OTHERWISE SPECIFIED, do not use supplemental coatings (paints, greases, or other corrosion inhibitors) on threaded fasteners or fastener joint interfaces. Generally, such coatings adversely affect the fastener torque and joint clamping force, and may damage the fastener. When you install fasteners, use the correct tightening sequence and specifications. Following these instructions can help you avoid damage to parts and systems.

2. Install the hub and bearing assembly (1) onto the knuckle and install the hub and bearing assembly bolts. Refer to WHEEL BEARING AND WHEEL HUB REPLACEMENT.
3. Check the front wheel alignment. Refer to WHEEL ALIGNMENT SPECIFICATIONS.
