Installation Procedure

Description:

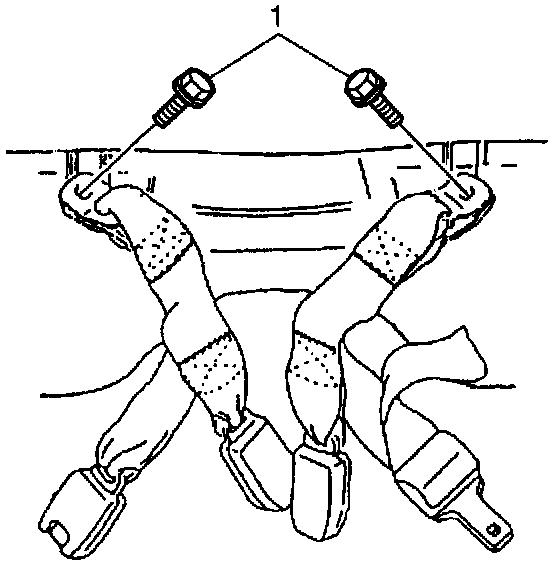

1. Install the rear seat center buckle belt, or rear seat center buckle/latch belt.
2. Install the rear seat center belt nut.
Tighten
Tighten the rear seat center belt nut to 42 N.m (31 lb. ft).

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the rear seat cushion. Refer to Rear Seat Cushion in Seats and Carpet.
