Installation Procedure

Description:

1. Install the driver seat buckle side belt.

Notice: Refer to Fastener Notice in Service Precautions.

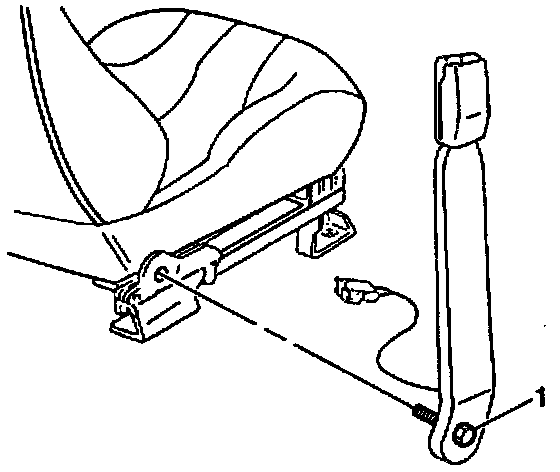

2. Install the driver seat buckle side belt bolt (1).
Tighten
Tighten the driver seat side belt bolt to 47 N.m (35 lb. ft).
3. Install the driver seat assembly. Refer to Seats and Carpet.
