Removal

Description:

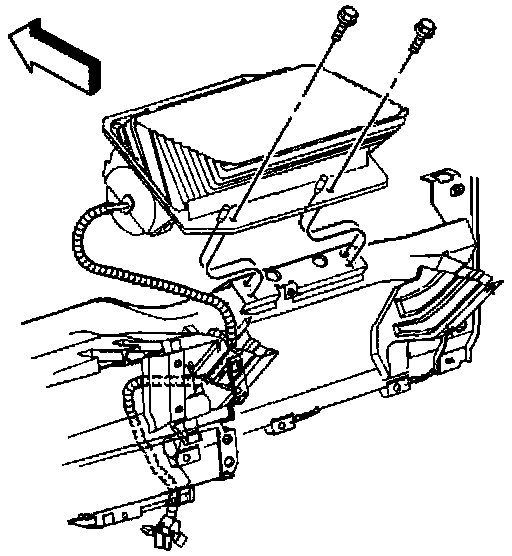

1. Disable the SIR system. Refer to Disabling the SIR System.
2. Remove the I/P trim pad. Refer to Instrument Panel, Gauges and Console.
3. Remove the inflatable restraint I/P module pigtail harness from the I/P harness clips.
4. Remove the inflatable restraint I/P module mounting fasteners.
5. Remove the inflatable restraint I/P module from the vehicle.
