Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

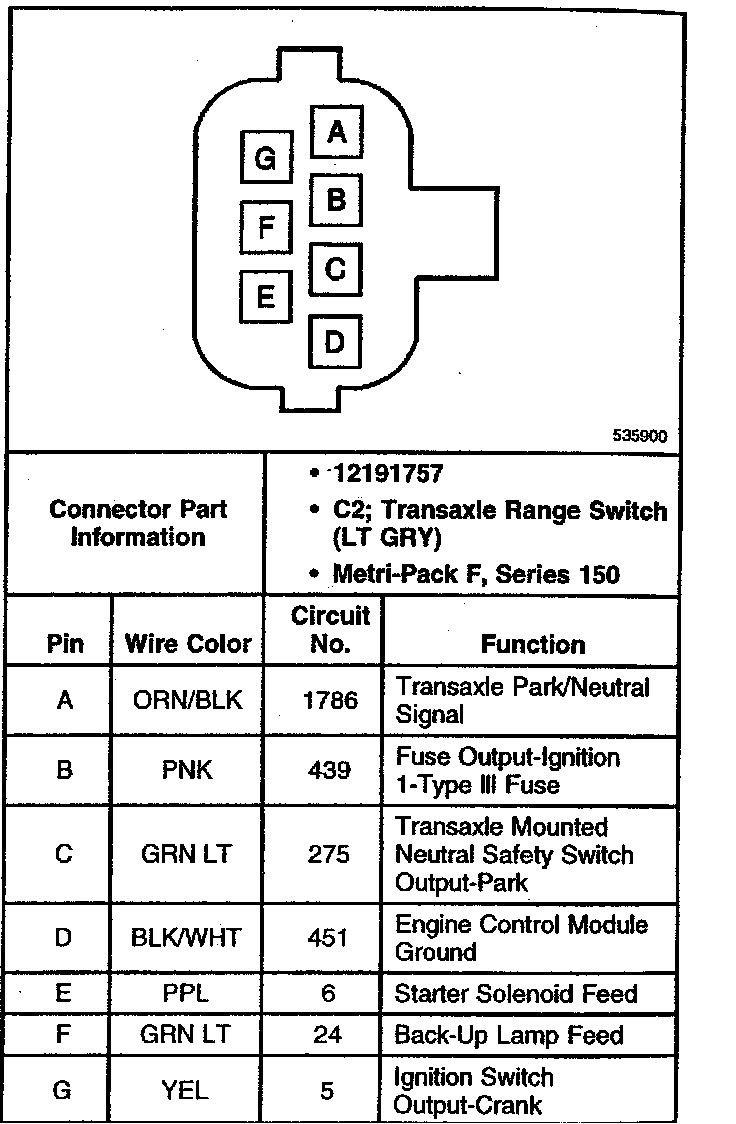

C2 - Transaxle Range Switch
C2 - Transaxle Range Switch
