Canister Purge Control Valve: Service and Repair

EVAP Canister Vent Valve:

Removal Procedure

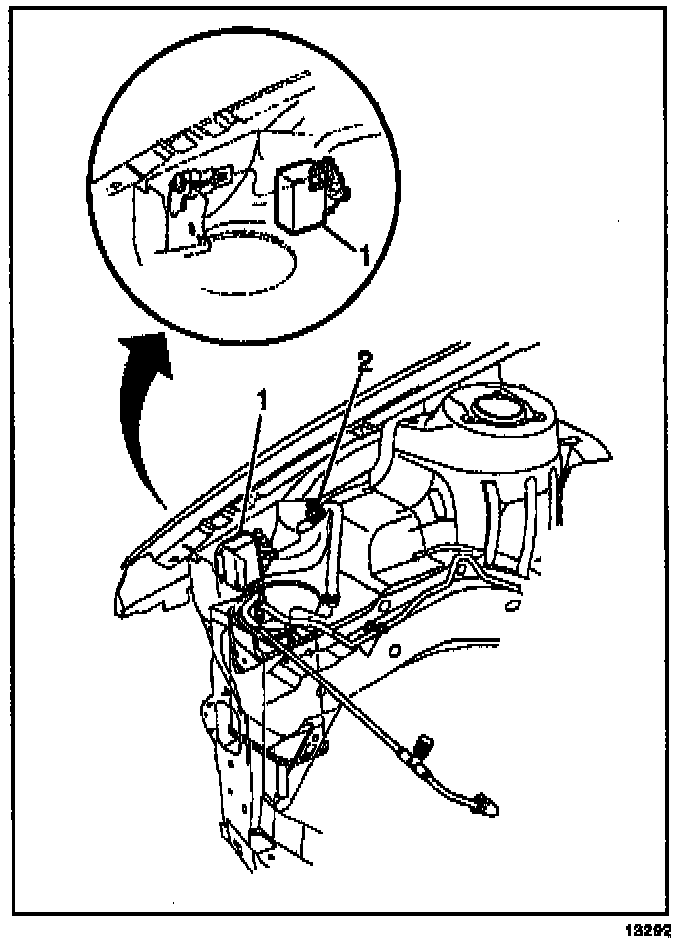

1. Disconnect the vent solenoid electrical connector.

2. Remove the vent solenoid hose clamp (2).

3. Remove the hose to the vent solenoid.

4. Remove the vent solenoid (1) from the mounting bracket.


Installation Procedure

1. Slide the vent solenoid (1) onto the mounting bracket.

2. Lubricate the hose ends with lubricant.

3. Install the hose to the vent solenoid.

4. Tighten the vent solenoid hose clamp (2).

5. Connect the vent solenoid electrical connector.
