Home >> Oldsmobile >> 1998 >> Achieva V6-3100 3.1L MFI VIN M >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Fuses >> HTR-A/C and 02 Fuse

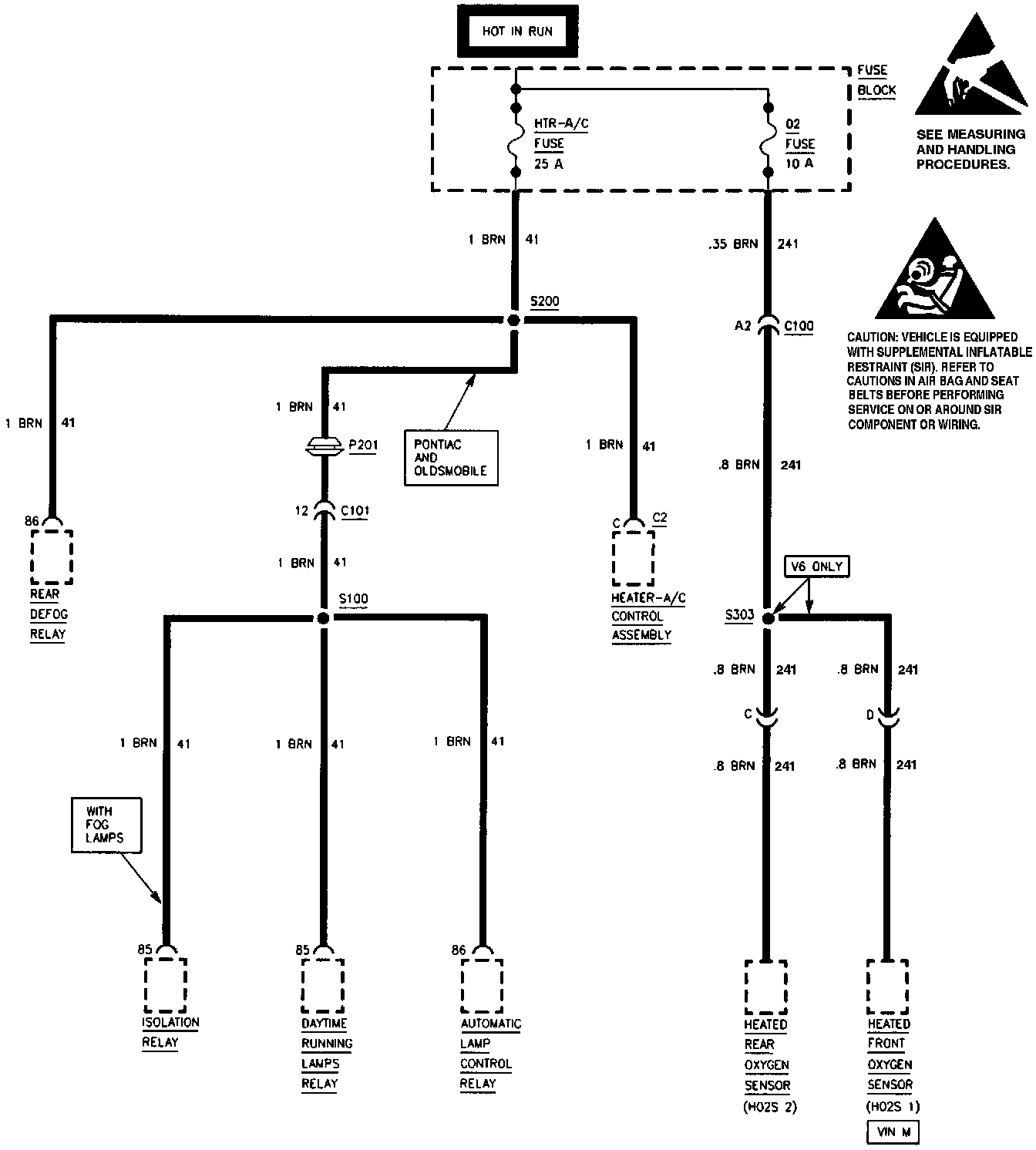

HTR-A/C and 02 Fuse

HTR-A/C And O2 Fuse:
